Запчасти Case 26 (097A) - G33471 LOADER SINGLE TILT CYLINDER, GLAND HAS IDENTIFICATION RING

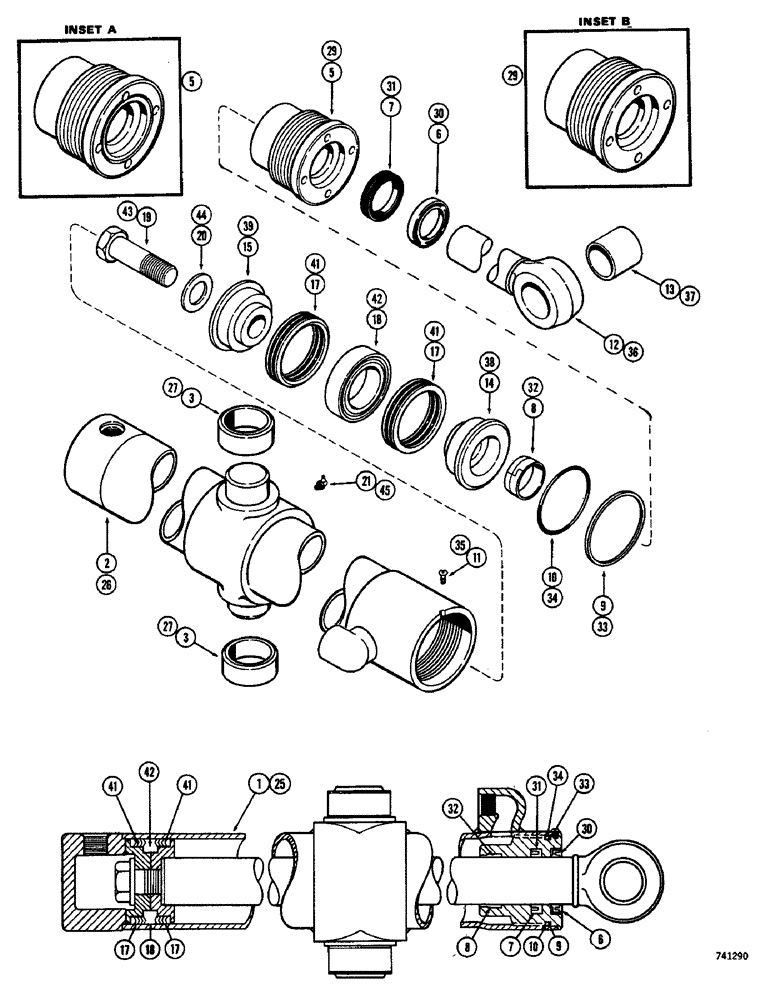

Схема запчастей Case 26 - (097A) - G33471 LOADER SINGLE TILT CYLINDER, GLAND HAS IDENTIFICATION RING

Артикул

Название

Примечание

Количество

1

REFERENCE

SPARE PART

ASSY. tilt, 3" dia. x 20" stroke, gland with ID ring, Includes: Ref. 2 - 21

1шт.

2

D33438

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

G33485

GLAND

ASSY. - (See inset A), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

7

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up (Static)

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - (3 x 3-1/4 x 1/8") (Static)

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

G33422

ROD

ASSY. - piston (1-1/2" dia.), Includes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

14

G33150

PISTON

- split (Rod end)

1шт.

15

D28366

PISTON

- split (Bolt end)

1шт.

16

RESERVED

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 17 and 18

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center packing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- retaining bolt (7/8 x 1-3/8 x 1/8")

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32292

KIT

SEAL KIT cylinder repair, Includes: Ref. 6 - 10 and P/N G33151 for G33471 Cylinder Assy.

1шт.

25

G32479

CYLINDER

ASSY. tilt, 3" dia. x 20" stroke, loader single tilt, gland has solid outer rod wiper-no identification ring, Includes: Ref. 26 - 34

1шт.

26

D33438

TUBE ASSY. - cylinder body, G32479 loader single tilt , gland has solid outer rod wiper-no identification ring, Includes: Ref. 27

1шт.

27

D31511

BUSHING

- tube trunnion, G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring

2шт.

G32734

GLAND

ASSY. - (See inset B), G32479 loader single tilt cylinder, has solid outer rod wiper-no identifiaction ring, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND, G32479 loader single tilt cylinder has solid outer rod wiper-no identification ring

1шт.

30

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32479 loader single tilt cylinder gland has solid outer wiper-no identification ring

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

31

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 1/8"), G32479 loader single tilt cylinder gland has solid outer wiper-no identification ring

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

33

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up (Static), G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

34

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - (3 x 3-1/4 x 1/8") (Static), G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

35

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32479 loader single tilt cylinder has solid outer rod wiper-no identification ring

1шт.

36

D32146

ROD

ASSY. - piston (1-1/2" dia.), G32479 loader single tilt cylinder gland has solid outer wiper-no identification ring, Includes: Ref. 37

1шт.

37

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod, G32479 loader single tilt cylinder gland has solid outer wiper-no identification ring

1шт.

38

D28365

PISTON

- split (Rod end), G32479 loader single tilt cylinder gland has solid outer wiper-no identification ring

1шт.

39

D28366

PISTON

- split (Bolt end), G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring

1шт.

G33151

PACKING

ASSY. - piston, G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring, Includes: Ref. 41 and 42

1шт.

Part of P/N G32292 Cylinder Repair Seal Kit

1шт.

41

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type, G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring

2шт.

42

NSS

NOT SOLD SEPARAT

RING - center packing, G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification

1шт.

43

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining (3/4 x 2-1/2" N.F. hex.), G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring

1шт.

44

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- retaining bolt (7/8 x 1-3/8"), G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring

1шт.

45

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G32479 loader single tilt cylinder gland has solid outer rod wiper-no identification ring 90º, 1/8" NPT x .84" lg

1шт.

G32292

KIT

SEAL KIT cylinder repair, Includes: Ref. 30 -34 and P/N G33151 for G32479 Cylinder Assy.

1шт.
