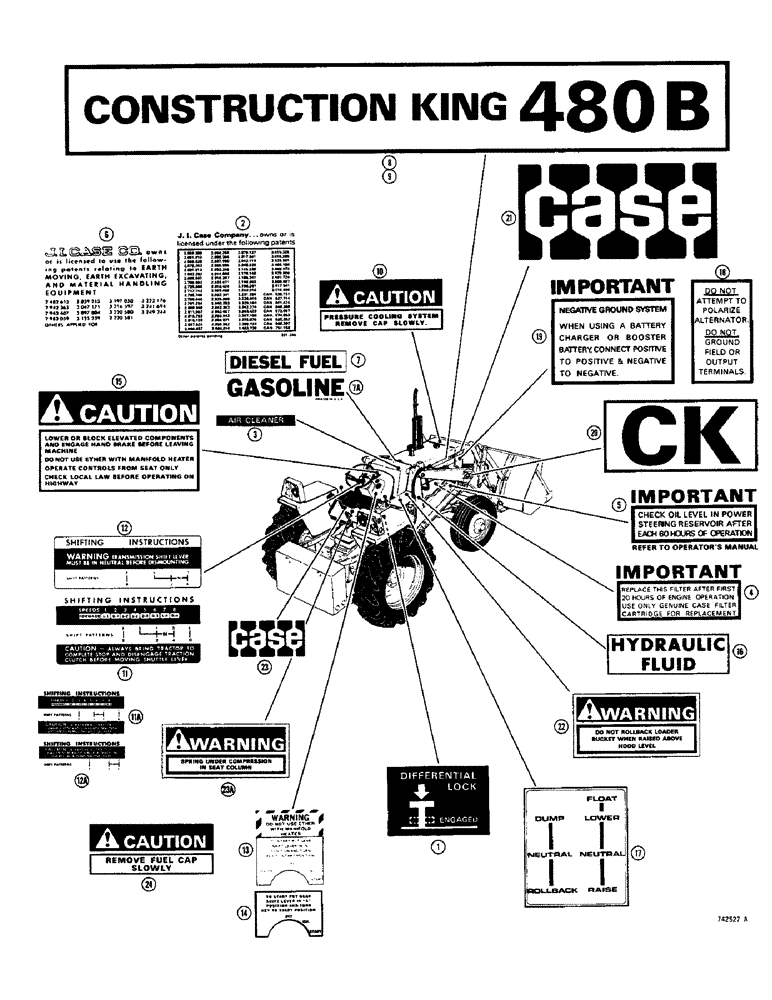

Запчасти Case 26 (090) - DECALS, EARLY PRODUCTION

1

321-1646

DECAL

- differential lock

1шт.

2

321-246

DECAL

- patent, tractor (L.H. side of torque tube housing )

1шт.

3

321-1654

DECAL

- air cleaner

1шт.

4

321-2101

DECAL

- oil filter

1шт.

5

321-2102

DECAL

- check power steering oil level, on R.H. loader frame

1шт.

6

321-663

DECAL

- patent, on L.H. loader frame

1шт.

7

321-230

DECAL

- diesel fuel, on fuel tank

1шт.

7a

321-18

DECAL

- gasoline (On fuel tank)

1шт.

8

321-1982

DECAL

- "Construction King 480B", R.H. hood

1шт.

9

321-1983

DECAL

- "480B Construction King", L.H. hood

1шт.

10

321-3061

DECAL

- warning, pressure cap (On radiator)

1шт.

11

321-1030

DECAL

- shifting (Dual range) L.H. side of dash (Before transmission SN.2447415)

1шт.

11a

321-2651

DECAL

- shifting (Dual range) L.H. side of dash (Transmission SN. 2447415 and after)

1шт.

12

321-948

DECAL

- shifting (4 speed) L.H. side of dash (Before transmission SN. 2447415)

1шт.

12a

321-2648

DECAL

- shifting (4 speed) L.H. side of dash (Transmission SN. 2447415 and after)

1шт.

13

321-667

DECAL

- starting, diesel models (R.H. side of dash)

1шт.

14

321-666

DECAL

- starting, gas models (R.H. side of dash)

1шт.

15

321-3051

DECAL

- caution, on hood

1шт.

16

321-229

DECAL

- hydraulic fluid, on R.H. loader frame

2шт.

17

321-1230

DECAL

- control valve, on loader controls

1шт.

18

321-1061

DECAL

- caution, alternator

1шт.

19

321-1062

DECAL

- caution, battery ground

1шт.

20

321-1482

DECAL

- CK, on loader lift frame

2шт.

21

321-1438

DECAL

- Case, on side of hood

2шт.

22

321-3050

DECAL

- warning, do not roll back bucket (At loader controls)

1шт.

23

321-1570

DECAL

- Case, loader models (Reflective) back to operators seat (When stock is exhausted, order 321-1334 decal for service)

1шт.

23

321-1334

DECAL

- Case, loader models (Non reflective) back of operators seat

1шт.

23a

321-3055

DECAL

- caution, seat spring

1шт.

24

321-3057

DECAL

- caution, remove fuel cap slowly

1шт.

25

321-2533

DECAL

- "480B", on loader lift frame (If used) not shown

2шт.

26

321-1572

DECAL

- "Case", on loader lift frame (If used) not shown

2шт.

D54873

KIT

- decal, includes items 1 thru 24

1шт.
