Запчасти Case 26 (086) - D44563 LOADER CONTROL VALVES & LEVERS

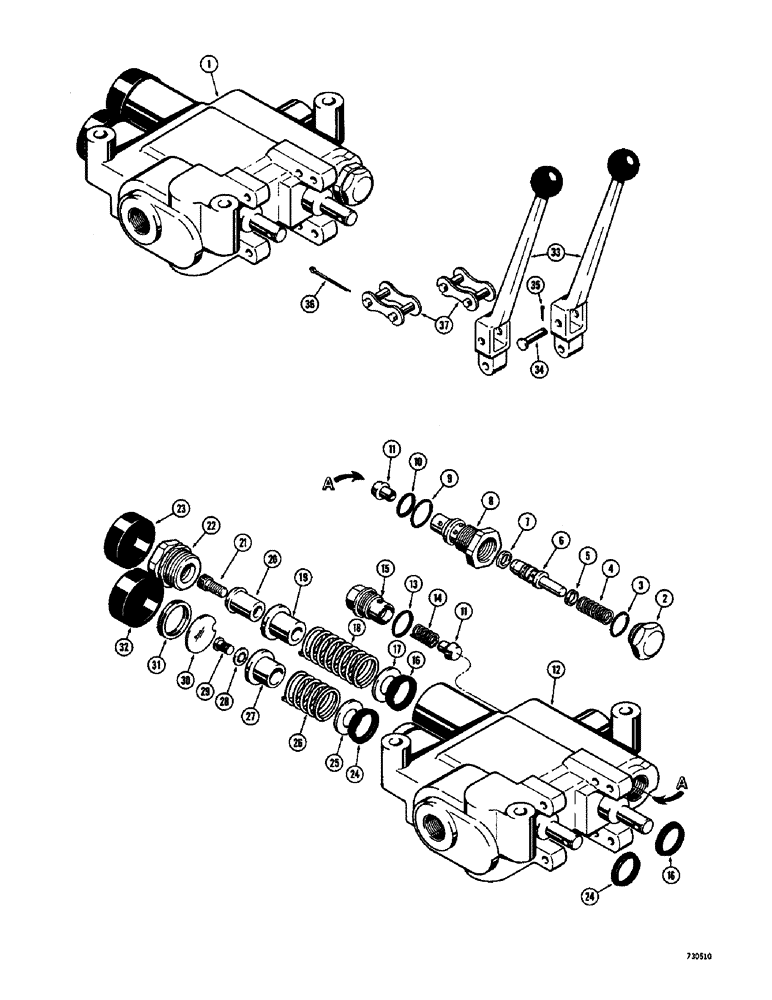

Схема запчастей Case 26 - (086) - D44563 LOADER CONTROL VALVES & LEVERS

Артикул

Название

Примечание

Количество

1

D44563

VALVE - Loader control, 2 spool (Gresen No. SPK-4-4-WK), Includes: Ref. 2 - 26

1шт.

D48202

VALVE

RELIEF - main, Includes: Ref. 2 - 10

1шт.

2

D39716

PLUG

CAP - main relief

1шт.

3

D32110

O-RING

SEAL - "O"ring

1шт.

4

D51540

VALVE SPRING

SPRING - relief valve

1шт.

5

A55893

SHIM,.0418" Thk

1шт.

A55894

SHIM,.0209" Thk

1шт.

D39712

SHIM

- .010" thick

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

7

D39714

RING

SEAL - ring

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O"ring

1шт.

10

D39718

O-RING,0.989" ID x 1.129" OD

SEAL "O"ring

1шт.

11

D28576

VALVE POPPET

POPPET - check

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve

1шт.

13

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

14

D28840

SPRING

- check poppet

1шт.

15

D28574

PLUG

- check poppet

1шт.

16

36642

SEAL

RING - wedge, spool seal

2шт.

17

36650

WASHER

- spool stop

1шт.

18

D32602

VALVE SPRING

SPRING - centering, 4 position spool

1шт.

19

36652

COLLAR

- stop, 4 position spool

1шт.

20

D48205

PLUNGER

- detent

1шт.

21

D48204

SCREW

- special

1шт.

22

T42191

DETENT

CAP - detent, float spool

1шт.

23

36645

CAP

- rubber, spool end

1шт.

24

36642

SEAL

RING - wedge, spool seal

2шт.

25

36650

WASHER

- spool stop

1шт.

26

36632

SPRING

- centering, 3 position spool

1шт.

27

36630

DRAWBAR SUPPORT

- stop, 3 position spool, Includes: Ref. 28 - 32

1шт.

28

36628

LOCK WASHER

- lock

1шт.

29

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

30

663023R1

CAP

- stop

1шт.

31

36633

LID

SNAP RING - stop disc

1шт.

32

36645

CAP

- rubber, spool end

1шт.

33

D23722

HANDLE

LEVER - valve control

2шт.

34

36627

SEAT

PIN -, Serial Range: lever-spool

2шт.

35

132-375

PIN - cotter, 5/64" dia. x 1/2"

2шт.

36

132-13

PIN

- cotter, 1/16" dia. x 1-1/2"

2шт.

37

36640

DRAG LINK

LINK -, Serial Range: valve-lever

2шт.
