Запчасти Case 26 (085A) - D58538 HYDRAULIC PUMP

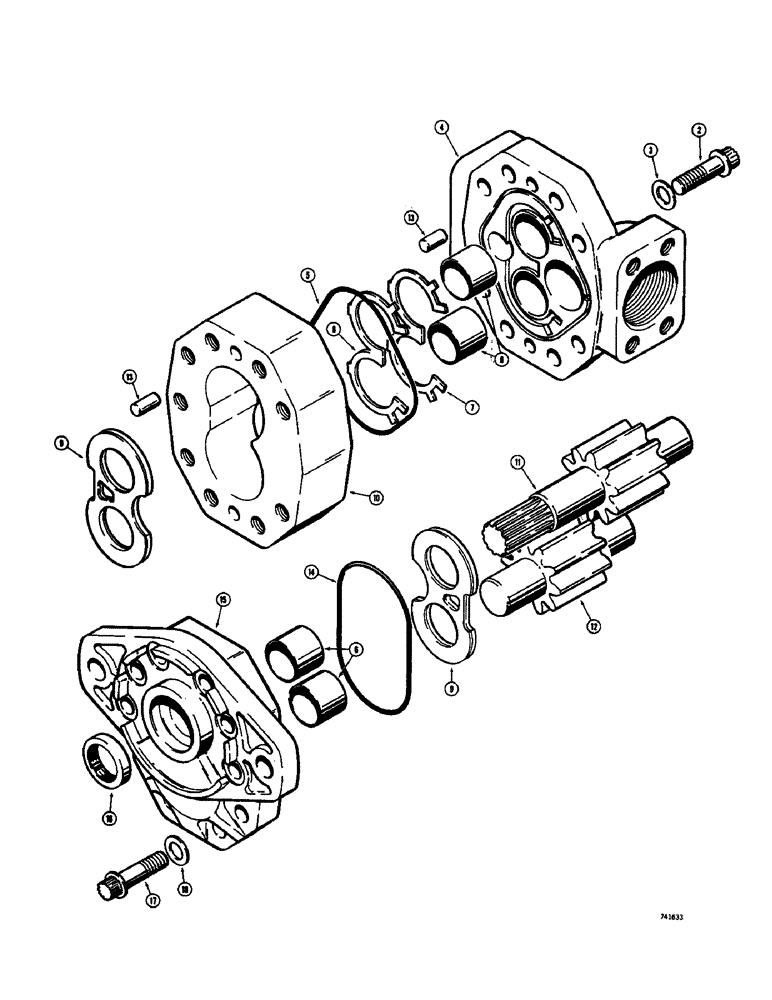

Схема запчастей Case 26 - (085A) - D58538 HYDRAULIC PUMP

Артикул

Название

Примечание

Количество

1

D58538

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, complete (Dana #1402-026-002) Not illustrated, Includes: Ref. 2 - 18

1шт.

D53690R

REMAN-HYD PUMP

26, 26B, Reman for New P/N D58538

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-68

CAPSCREW - ferry head (7/16" - 14 NC x 1-3/4")

8шт.

3

D60878

WASHER - flat, special (7/16")

8шт.

4

D60869

COVER - rear

1шт.

5

D60871

GASKET - rear cover

1шт.

6

D60877

BUSHING - shaft

4шт.

7

D60876

SEAL - balance

1шт.

8

D60875

SEAL - backup

1шт.

9

D60872

THRUST PLATE

2шт.

10

D60868

BODY - pump

1шт.

11

D60873

GEAR

DRIVE GEAR - pump

1шт.

D53690R

REMAN-HYD PUMP

26, 26B, Reman for New P/N D60873

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

D60874

DRIVEN GEAR - pump

1шт.

13

T29715

DOWEL PIN

4шт.

14

D60870

GASKET - front cover

1шт.

15

D60867

COVER - front

1шт.

16

D60889

SEAL

- shaft

1шт.

17

166-67

CAPSCREW - ferry head (7/16 - 14 NC x 1-1/2")

9шт.

18

D60878

WASHER - flat, special (7/16")

9шт.

Выбрано товаров: 22
