Запчасти Case 26 (084) - D48950 HYDRAULIC PUMP

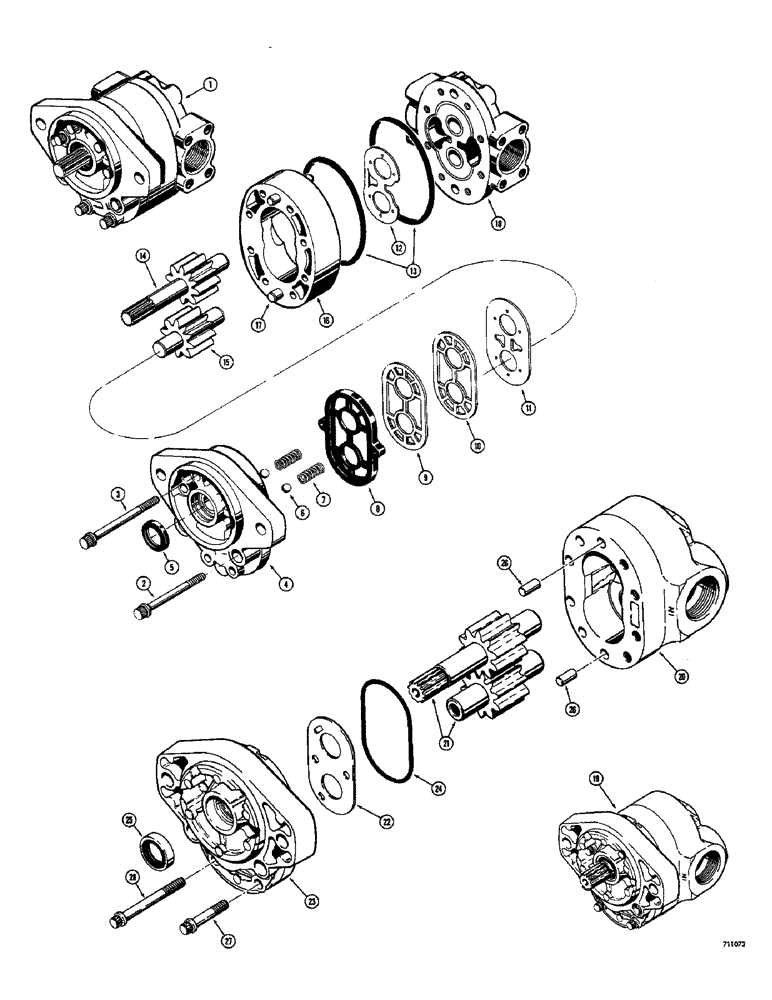

Схема запчастей Case 26 - (084) - D48950 HYDRAULIC PUMP

Артикул

Название

Примечание

Количество

1

D48950

PUMP

- hydraulic, Cessna no. 240505-LAD (24 to 25 G.P.M. at 2000 R.P.M. at 2000 P.S.I.), Includes: Ref. 2 - 18

1шт.

D53690R

REMAN-HYD PUMP

26, 26B, Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

SCREW - Ferry cap (3/8" x 3-3/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - Ferry cap (3/8" x 3-1/2")

4шт.

4

D48879

COVER

- dive shaft end

1шт.

D48884

SEAL

KIT - pump, rebuild, Includes: Ref. 5 - 13

1шт.

5

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

6

211-312

BALL,13/32" Dia

- steel

2шт.

7

D31403

SPRING

- ball retaining

2шт.

8

D31397

SEAL

- diaphragm

1шт.

9

H273920

GASKET

- backup

1шт.

10

A42305

GASKET

- protector

1шт.

11

A42304

DIAPHRAGM

- pump

1шт.

12

D41322

PLATE

- thrust

1шт.

13

H756221

O-RING,4.987" ID x 5.193" OD

SEAL - "O"ring, 4-3/4" I.D.

2шт.

D48881

GEAR

SET, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVE SHAFT AND GEAR - pump

1шт.

15

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

16

D56471

HOUSING

- gear

1шт.

17

D48882

PIN

- dowel

2шт.

18

D48883

COVER

- port end

1шт.

18a

D60210

LUBRICANT

LUBE - molykote type G (3 oz. tube)

1шт.

19

D49241

PUMP, HYDRAULIC

PUMP - hydraulic, complete (TRW 19-920178-00), Includes: Ref. 20 - 28

1шт.

20

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump (Includes bushings) D49241 hydraulic

1шт.

21

D50103

GEAR

SET - drive and driven, D49241 hydraulic pump

1шт.

22

D50104

PLATE

- pressure, D49241 hydraulic pump

1шт.

D50105

COVER

ASSEMBLY - front, D49241 hydraulic pump, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - front (Includes bushings and seals), D49241 hydraulic pump

1шт.

24

F30271

SEAL

- "O"ring, pressure plate, D49241 hydraulic pump

1шт.

25

D52477

SEAL

- shaft, D49241 hydraulic pump

1шт.

26

D50106

DOWEL

- cover, D49241 hydraulic pump

2шт.

27

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

CAP SCREW - 12 point (3/8" - 16 NC x 1-3/4"), D49241 hydraulic pump

4шт.

28

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

CAP SCREW - 12 point (3/8" - 16 NC x 3-1/4"), D49241 hydraulic pump

4шт.

29

D60210

LUBRICANT

LUBE - molykote type G (3 oz. tube), D49241 hydraulic pump

1шт.

Выбрано товаров: 35
