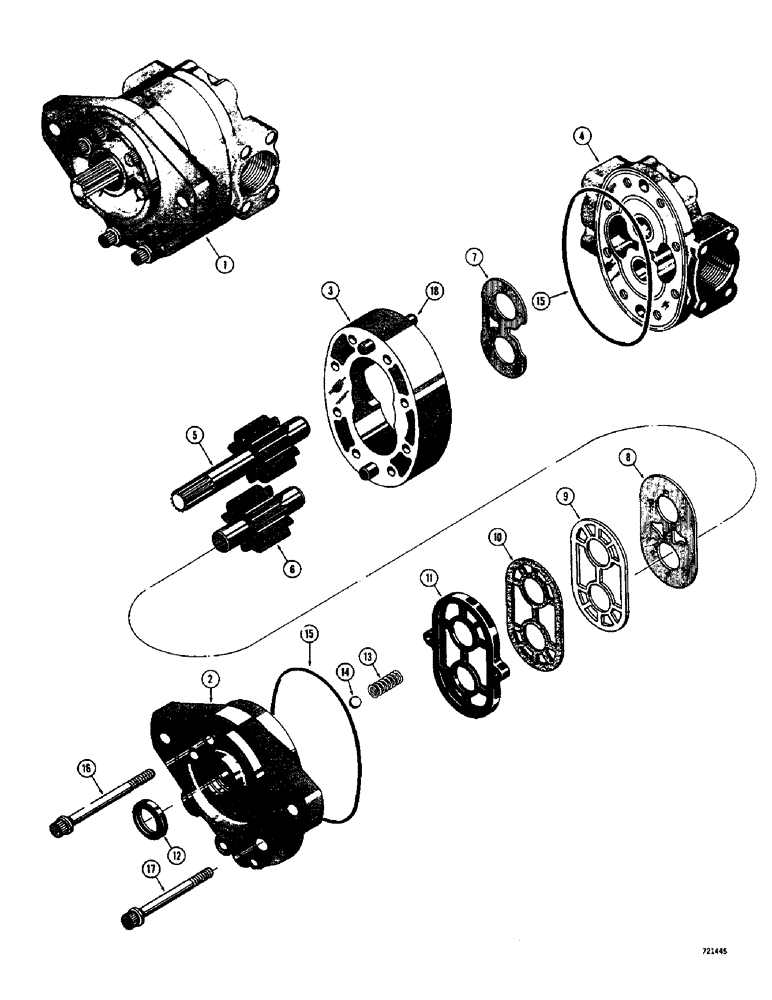

Запчасти Case 26 (083A) - R24623 HYDRAULIC PUMP

1

R24623

PUMP, HYDRAULIC

PUMP - hydraulic, Cessna No. 24509-LBP, Includes: Ref. 2 - 18

1шт.

2

R25505

COVER

- drive shaft end

1шт.

3

D52921

SPACER

BODY - center

1шт.

4

R26378

LARGE PLATE

COVER - port end

1шт.

D52922

GEAR WHEEL

GEAR SET - drive and driven, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - idler

1шт.

D59656

GASKET KIT

KIT - seal, Includes: Ref. 7 - 15

1шт.

7

D41322

PLATE

- thrust

1шт.

8

A42304

DIAPHRAGM

- pump

1шт.

9

H260935

GASKET

- protector

1шт.

10

A42303

GASKET

- backup

1шт.

11

D4888

SEAL - diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

13

D31403

SPRING

- ball retaining

1шт.

14

211-312

BALL,13/32" Dia

- steel

1шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

SEAL - "O"ring, 4-3/4" I.D.

2шт.

16

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - Ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

17

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

- Ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

18

D52925

DOWEL

- body

2шт.
