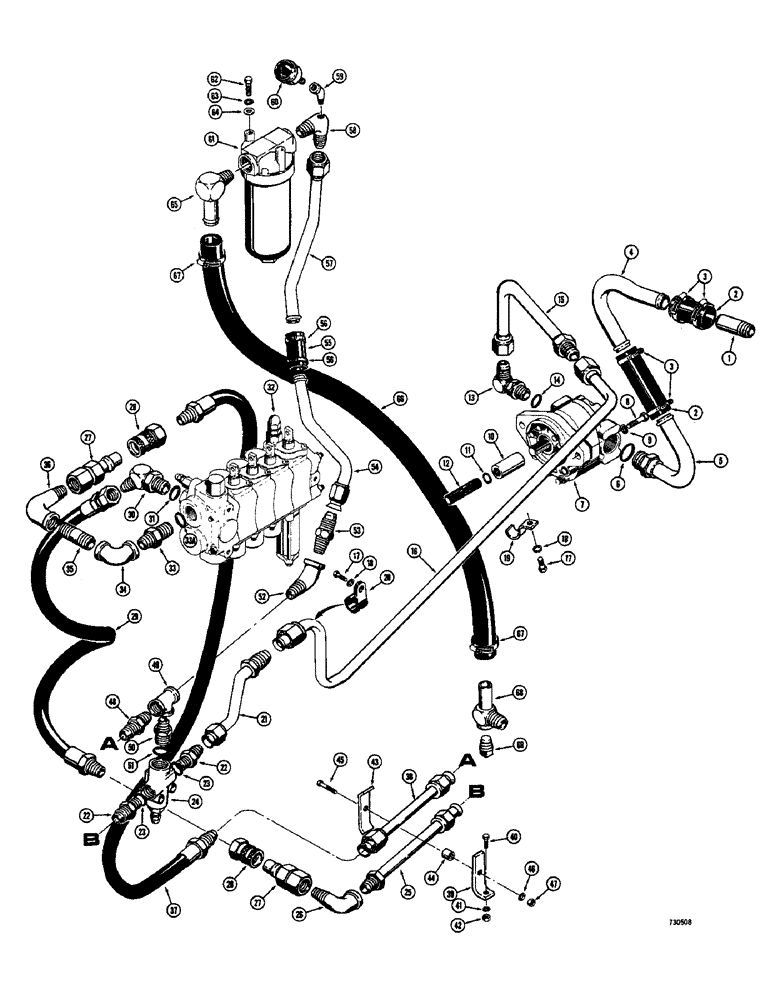

Запчасти Case 26 (075C) - 3-POINT HITCH PRIMARY HYDRAULICS, USED ON NON-LOADER MODELS ONLY 3-POINT HITCH SN. 5233159 & AFTER

1

D33363

FITTING

STEM - hose, suction (At subframe)

1шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction , low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

D55652

TUBE

- suction, upper

1шт.

5

D36747

STEM

- hose, suction (At pump), Includes: Ref. 6

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

D52271

PUMP

- hydraulic (Parts list Figure 76)

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

9

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

10

D31108

SPLINED COUPLING

COUPLING - pump to driveshaft, Includes: Ref. 11

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

12

D30569

SHAFT

- drive, pump

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º - male, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

D55369

TUBE

- pressure, front

1шт.

16

D55975

TUBE

- pressure, intermediate

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

19

D55880

CLAMP

CLIP -, Serial Range: tube-frame

1шт.

20

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

-, Serial Range: tube-subframe

1шт.

21

D58454

TUBE - pressure, at relief valve

1шт.

22

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - straight, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

24

D52170

VALVE - relief (Parts list Figure 76)

1шт.

25

D58456

TUBE - pressure from relief valve

1шт.

26

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

27

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male (Parts list Figure 80)

2шт.

28

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female (Parts list Figure 80)

2шт.

29

L47858

HOSE,19.05mm ID x 1270mm L, SAE 100R2

- control valve to hitch valve (50" long) 3-point hitch models only

1шт.

30

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 45 degrees (3-point hitch models only), Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

D52970

CONTROL VALVE

VALVE ASSENBLY - 3-point hitch control (Sectional body) Parts list Figures 62 thru 68

1шт.

33

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight (Used with D52970 3-point hitch valves only), Includes: Ref. 33A

1шт.

33a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, 218-5022 connector

1шт.

34

221-398

ELBOW - pipe, 90 degrees (Female)

1шт.

35

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4" x 3"

1шт.

36

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

37

D49118

HOSE

- return, 3-point hitch valve to filter (33" long)

1шт.

38

D58458

TUBE - hydraulic return to filter (Rear)

1шт.

39

D52872

BRACKET - tube retaining

1шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

41

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

42

131-654

LOCK NUT,1/2"-13, GB

NUT - hex. (1/2" -13 NC)

1шт.

43

D58689

CLAMP - tube retaining

1шт.

44

D36524

BUSHING

SPACER - tube clamp

1шт.

45

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

46

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

47

131-652

LOCK NUT,3/8"-16, GB

NUT - hex. (3/8 - 16 NC)

1шт.

48

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight

1шт.

49

221-425

FITTING,3/4" NPT

TEE - 3/4" NPT

1шт.

50

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 51

1шт.

51

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

52

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 45 degrees, street (3/4" NPT)

1шт.

53

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight

1шт.

54

D58452

TUBE - return to filter (Middle)

1шт.

55

D25759

HOSE

- return to filter (7" long)

1шт.

56

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

57

D55750

TUBE

- hydraulic return to filter (Front)

1шт.

58

D55728

ELBOW UNION

ELBOW - 90 degree male, special

1шт.

59

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 45 degree street (1/8" NPT)

1шт.

59

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" NPT

1шт.

60

D29650

ELECTRICAL GAUGE

GAUGE - fluid pressure

1шт.

61

D43567

FILTER ASSY

- hydraulic oil (Parts list Figure 32)

1шт.

62

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

63

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

64

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

65

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - 90 degree hose adapter

1шт.

66

D28888

LARGE HOSE

HOSE - from filter (33" long)

1шт.

67

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

68

D33590

STEM - 90 degree hose adapter

1шт.
