Запчасти Case 26 (072) - 3-POINT HITCH PRIMARY HYDRAULICS, USED ON NON-LOADER MODELS ONLY BEF. 3 POINT HITCH SN. 5210976

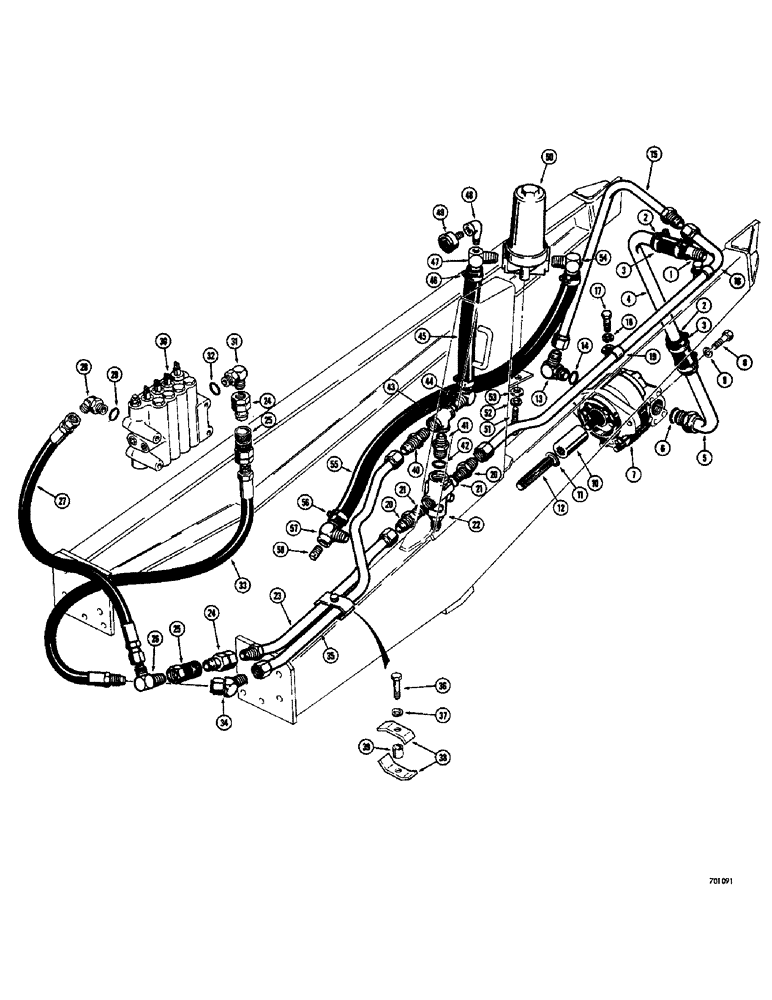

Схема запчастей Case 26 - (072) - 3-POINT HITCH PRIMARY HYDRAULICS, USED ON NON-LOADER MODELS ONLY BEF. 3 POINT HITCH SN. 5210976

Артикул

Название

Примечание

Количество

1

D33363

FITTING

STEM - hose, suction (At subframe)

1шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction , low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

D36752

TUBE - suction, upper

1шт.

5

D36747

STEM

- hose, suction (At pump), Includes: Ref. 6

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

D52271

PUMP

- hydraulic (Parts list Figure 76)

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

9

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

10

D31108

SPLINED COUPLING

COUPLING - pump to driveshaft, Includes: Ref. 11

1шт.

11

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

12

D30569

SHAFT

- drive, pump

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º - male, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

D30563

TUBE ASSY.

TUBE - pressure, front

1шт.

16

D52165

TUBE

- pressure, intermediate

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

19

R11405

CLAMP

-, Serial Range: tube-subframe

2шт.

20

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

22

D52170

VALVE - relief (Parts list Figure 76)

1шт.

23

D52161

TUBE ASSY.

TUBE - pressure, rear

1шт.

24

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 78)

2шт.

25

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list Figure 78)

2шт.

26

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees, male

1шт.

27

D31796

HOSE

- pressure line to 3 point hitch valve (29" long)

1шт.

28

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degrees, adjustable, Includes: Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

30

D50819

VALVE - control, 3 point hitch (Parts list Figures 58 and 60)

1шт.

31

D52040

ELBOW

- 45 degrees, adjustable

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

33

D49118

HOSE

- return, 3 point hitch valve to filter (33" long)

1шт.

34

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- male, 45 degrees (Swivel)

1шт.

35

D52167

HOUSING

TUBE - return, 3 point hitch, Serial Range: valve-filter

1шт.

36

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

38

D45576

CLAMP

- tube

2шт.

39

D45740

SPACER - tube clamp

1шт.

40

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

41

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - male, straight, Includes: Ref. 42

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

221-425

FITTING,3/4" NPT

TEE - pipe, female

1шт.

44

217-331

FITTING,90 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM - hose, 90 degrees (At pipe tee)

1шт.

45

D25759

HOSE

- return, Serial Range: line-filter

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

47

D32163

SHIM

STEM - hose, 90 degrees (At filter)

1шт.

48

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

49

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

50

D43567

FILTER ASSY

- hydraulic oil (Parts list Figure 24)

1шт.

51

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

52

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

53

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

54

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degrees (At filter)

1шт.

55

D32678

HOSE

- return, Serial Range: filter-subframe

1шт.

56

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

57

D33590

STEM - hose, 90 degrees (At subframe)

1шт.

58

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

Выбрано товаров: 58
