Запчасти Case 26 (071C) - 3-POINT HITCH SUBFRAME AND RELATED PARTS, NON-LOADER MODELS

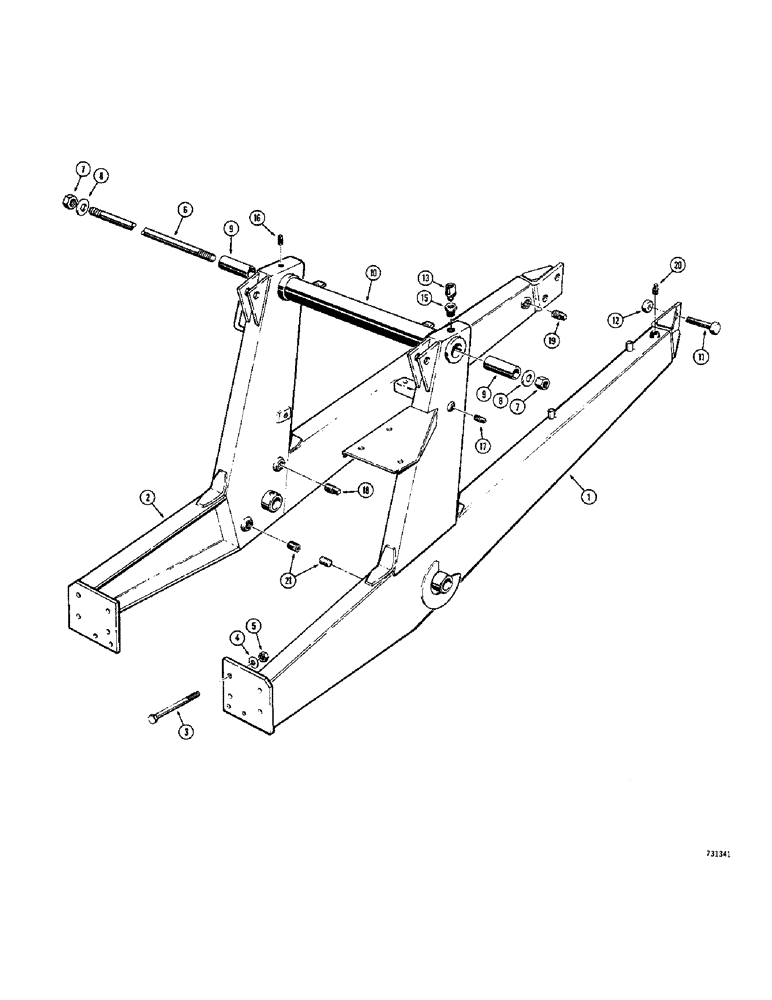

Схема запчастей Case 26 - (071C) - 3-POINT HITCH SUBFRAME AND RELATED PARTS, NON-LOADER MODELS

Артикул

Название

Примечание

Количество

1

D58001

SUBFRAME - loader, R.H.

1шт.

2

D58002

SUBFRAME - loader, L.H.

1шт.

3

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

HHCS - 5/8" - 11 NC x 8"

8шт.

4

A28084

WASHER

- special (If used)

8шт.

5

129-563

NUT,5/8"-11, G8

- hex., lock (5/8" - 11 NC)

8шт.

6

D39750

TIE-ROD

ROD - tie, subframe

1шт.

7

131-659

NUT,1"-8, GB

NUT - hex., lock (1" - 8 NC)

2шт.

8

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special

2шт.

9

D39749

BUSHING

- spacer

2шт.

10

D58166

TUBE

- subframe

1шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - hex., lock (3/4" - 10 NC)

4шт.

13

31543

BREATHER

- hydraulic reservoir

1-2шт.

15

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - pipe (1" NPT x 1/4" NPT)

1шт.

16

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head (3/8" NPT)

1шт.

18

221-15

PLUG,Sq Hd, 3/4"-14

- pipe, square head (3/4" NPT)

1шт.

19

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square head (1" NPT)

1шт.

20

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

21

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe socket head (3/4" NPT)

2шт.

Выбрано товаров: 20
