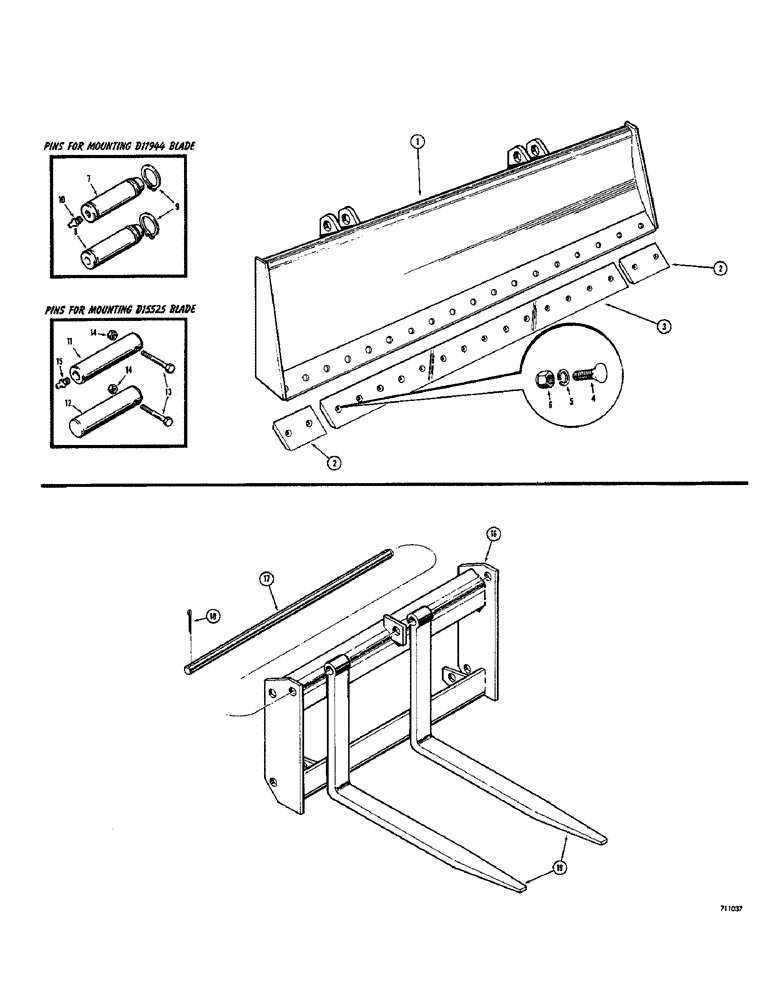

Запчасти Case 26 (022) - LOADER BLADE, USED WITH DUAL TILT CYLINDERS ONLY

D11944

BLADE - loader (Machinery item) Models with snap ring retained mounting pins, Includes: Ref. 1 - 6

1шт.

D15525

BLADE - loader (Machinery item) Models with bolt retained mounting pins, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - loader

1шт.

2

38150

EDGE

CUTTING EDGE - end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING EDGE - center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2" - 13 NC x 1-3/4"

18шт.

5

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

D14955

KIT

- bucket pin (Machinery item), used with D11944 blade or D30953 frame, Includes: Ref. 7 - 10

1шт.

7

D37287

PIN

- mounting, upper, D14955 kit, used with D11944 blade or D30953 frame

2шт.

8

D37286

PIN

- mounting, lower, D14955 kit, used with D11944 blade or D30953 frame

2шт.

9

D25279

SNAP RING,M35, Int

RING - retaining, pin, D14955 kit, used with D11944 blade or D30953 frame

8шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), D14955 pin kit, used with D11944 blade or D30953 frame

2шт.

D14600

KIT - bucket pin (Machinery item), D14600, used with D15525 blade or D48013 frame, Includes: Ref. 11 - 15

1шт.

11

D50187

PIN

- bucket, upper, D14600 used with D15525 blade or D48013 frame

2шт.

12

D50188

PIN

- bucket, lower, D14600 used with D15525 blade or D48013 frame

2шт.

13

113-289

X

HHCS - 3/8" - 16 NC x 2-3/4", D14600 used with D15525 blade or D48013 frame

4шт.

14

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC), D14600 used with D15525 blade or D48013 frame

4шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), D14600 pin kit, used with D15525 blade or D48013 frame

2шт.

16

D30953

FRAME - pallet, forks used with dual tilt cylinders only

1шт.

17

D21656

SHAFT

- fork mounting, pallet used with dual tilt cylinders only

1шт.

18

132-152

PIN

- cotter, 1/4" dia. x 1-3/4", pallet forks used with dual tilt cylinders only

2шт.

19

D47999

FORK

- pallet, used with dual tilt cylinders only

2шт.
