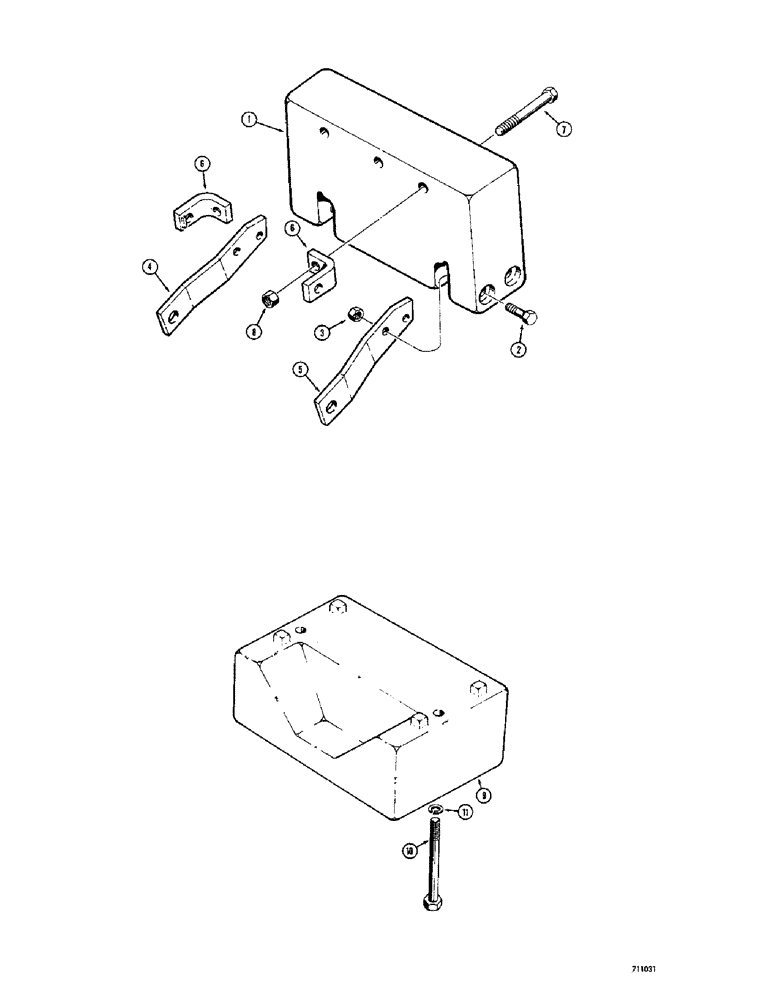

Запчасти Case 26 (018) - COUNTERWEIGHT (REAR MOUNTED), SN 5002997 AND AFTER

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

4

D44977

ARM

SUPPORT ARM - counterweight, R.H.

1шт.

5

D44978

ARM

SUPPORT ARM - counterweight, L.H.

1шт.

6

D31530

BRACKET

- counterweight attaching, top

2шт.

7

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

8

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

2шт.

9

D32736

WEIGHT

COUNTERWEIGHT - front, 500 lbs. (Cast), front mounted, used on non loader models with 3 point hitch

1шт.

9

D60533

WEIGHT

COUNTERWEIGHT - front, 500 lbs. (Fabricated), front mounted, used on non loader models with 3 point hitch

1шт.

10

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

HHCS - 3/4" - 10 NC x 8-1/2", front mounted counterweight used on non loader models with 3 point hitch

2шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- lock (3/4") Special hardened, front mounted counterweight used on non loader models with 3 point hitch

2шт.
