Запчасти Case 26 (016) - COUNTERWEIGHTS, USED ON MODELS WITHOUT BACKHOE OR DRAFT-O-MATIC BEFORE SN 5002997

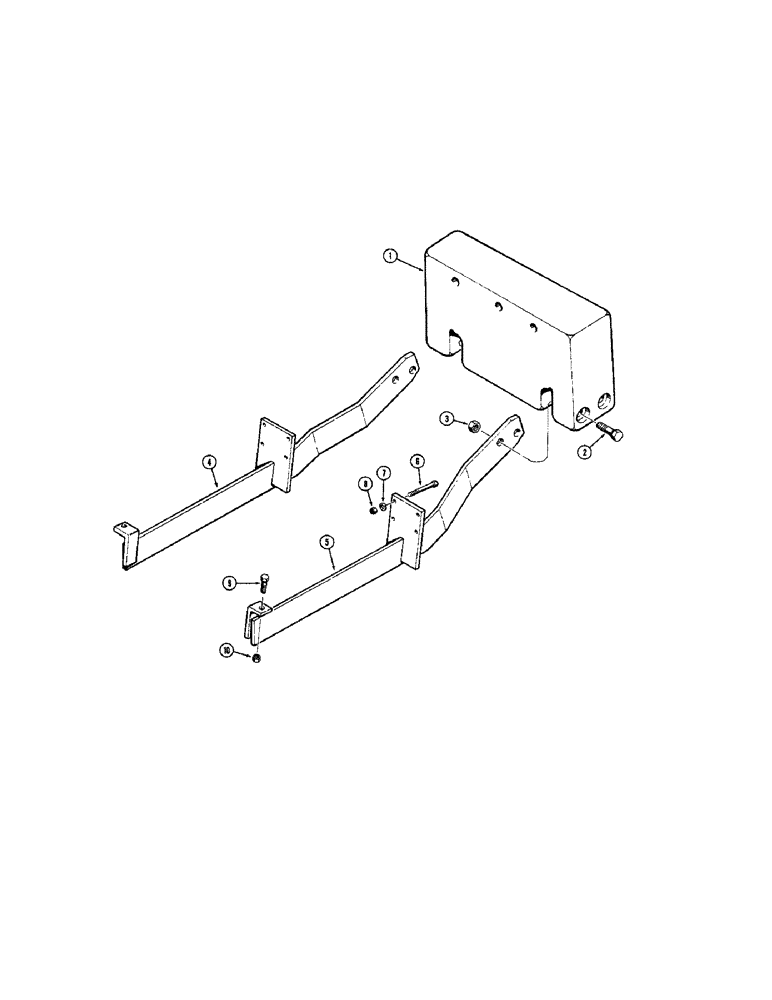

Схема запчастей Case 26 - (016) - COUNTERWEIGHTS, USED ON MODELS WITHOUT BACKHOE OR DRAFT-O-MATIC BEFORE SN 5002997

Артикул

Название

Примечание

Количество

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs.

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

4

D33814

SUPPORT ARM - counterweight, R.H.

1шт.

5

D33815

SUPPORT ARM - counterweight, L.H.

1шт.

6

113-639

BOLT

HHCS - 5/8" - 11 NC x 8"

4шт.

6

113-677

HHCS - 5/8" NC x 8-1/4" (Not shown)

4шт.

7

A28084

WASHER

- special (If used)

8шт.

8

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

9

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

10

25-1012

NUT,3/4"-10, G5

2шт.

Выбрано товаров: 11
