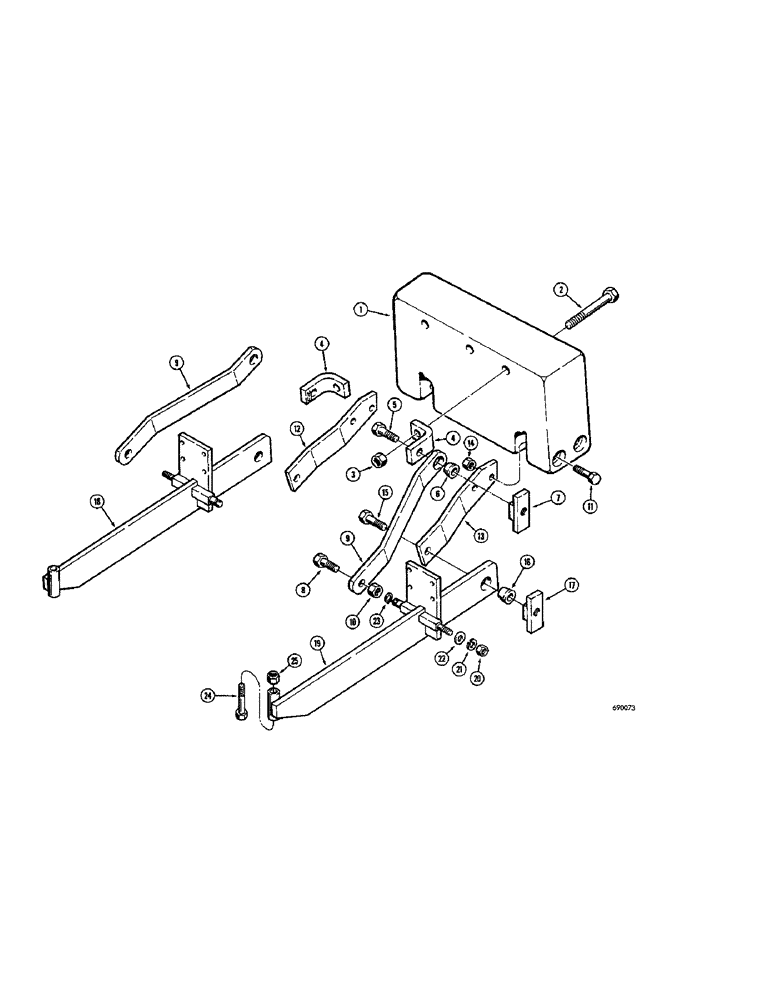

Запчасти Case 26 (016[1]) - QUICK DETACHABLE COUNTERWEIGHT BEFORE SN 5002997

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs

1шт.

2

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

2шт.

4

D31530

BRACKET

- conterweight mounting, upper

2шт.

5

D30716

BOLT

- special

2шт.

6

D30717

WASHER

- special, cone

2шт.

7

D31496

SPECIAL NUT

NUT - special, knock-off

2шт.

8

D44832

BOLT

- special

2шт.

9

D30726

ARM

SUPPORT ARM - upper

2шт.

10

25-1020

NUT,1 1/4"-7, G5

2шт.

11

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

12

D44977

ARM

SUPPORT ARM - at counterweight (R.H.)

1шт.

13

D44978

ARM

SUPPORT ARM - at counterweight (L.H.)

1шт.

14

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

4шт.

15

13-2080

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

2шт.

16

D30717

WASHER

- special, cone

2шт.

17

D31496

SPECIAL NUT

NUT - special, knock-off

2шт.

18

D46662

SUPPORT ARM - lower, at subframe (R.H.)

1шт.

19

D46663

SUPPORT ARM - lower, at subframe (L.H.)

1шт.

20

25-1010

NUT,5/8"-11, G5

2шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

23

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

24

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

HHCS - 3/4" - 10 NC x 6-3/4"

2шт.

25

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.
