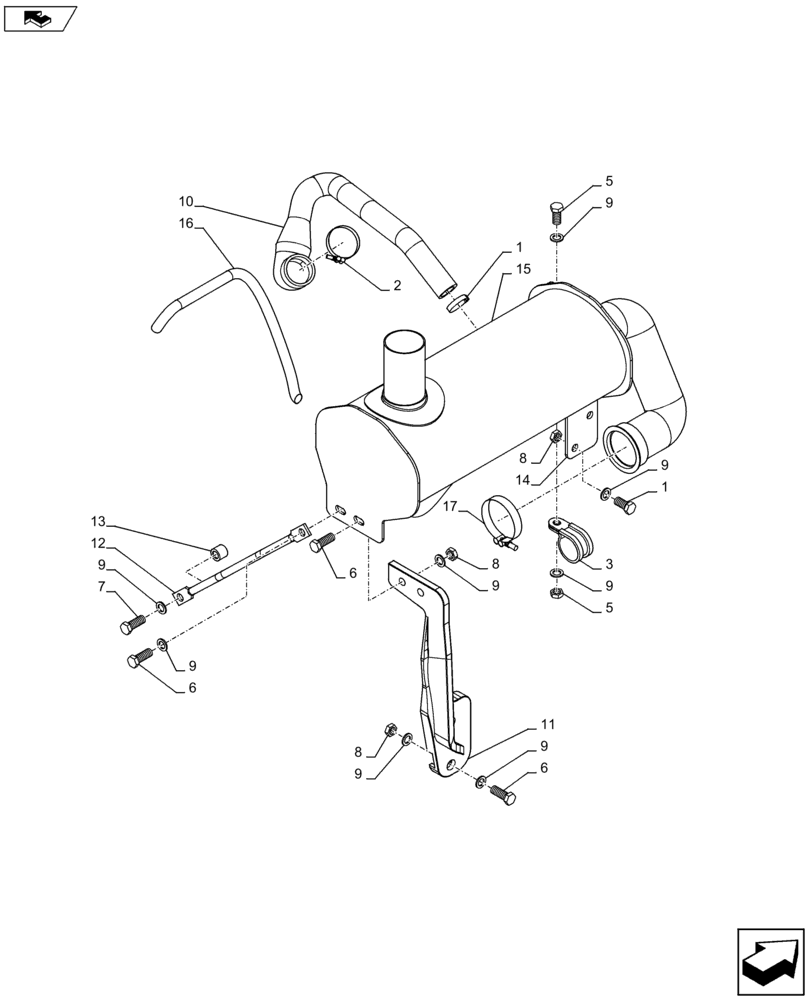

Запчасти Case 590SN (10.254.13) - MUFFLER ASSY (10) - ENGINE

1

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

2

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

3

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

7

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

15шт.

10

47391716

HOSE,25mm ID, 50mm ID, 279mm L x 193mm L

1шт.

11

87451167

SUPPORT

1шт.

12

87549969

ROD,15.8mm OD

1шт.

13

87549973

SPACER,11mm ID x 19.05mm OD x 13mm L

1шт.

14

87612343

BRACKET

1шт.

15

87617604

MUFFLER,W/O Spark Arrestor, Aspirated

1шт.

16

87638737

HOSE,17.00 mm ID, 22.00 mm ID x 110.00 mm, SAE J30R6

1шт.

17

A170467

CLAMP,72mm ID

1шт.
