Запчасти Case 590SN (88.090.11[03]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES

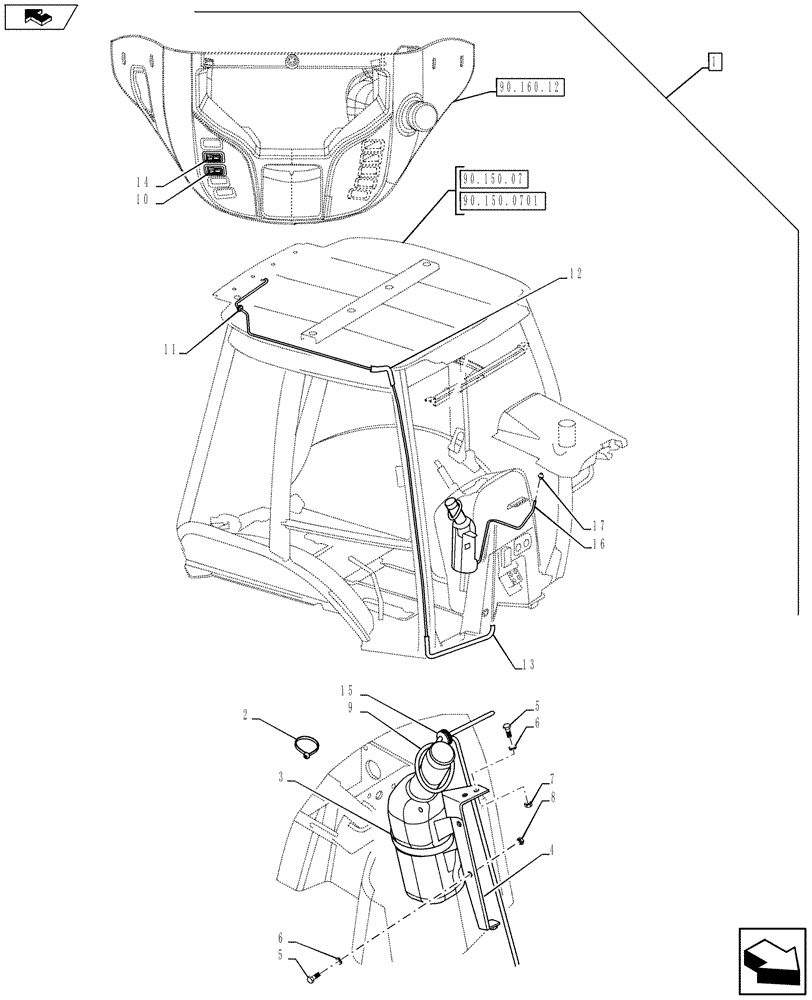

Схема запчастей Case 590SN - (88.090.11[03]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES
5
11
90.150.0701
15
10
4
7
90.160.12
1
8
16
6
17
90.150.07
5
14
13
2
3
home
6
12
9

Артикул

Название

Примечание

Количество

1

84410617

KIT

Canopy Conversion Wide - DLX, Incl 2 - 17, Serial Range: -`0

1шт.

See Ref. 88.090.11 [01] to 88.090.11 [02], 88.090.11 [04] to 88.090.11 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

3

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

1шт.

4

87491347

BRACKET

Replaces 87676276

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

7

833-40408

NUT,M8, U

3шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

87748047

SEAL,78mm ID x 106.6mm OD x 7mm Thk

1шт.

10

84222279

WINDSHIELD WASHER SW

Rocker; Front

1шт.

11

87442441

GROMMET,27mm OD, 9.53mm ID, 11.1mm L

Washer Hose, Rear

1шт.

12

408965A1

GUARD

1шт.

13

87741447

HOSE PROTECTION,10.5mm ID x 1800mm L

Guard; 1800 mm, Front Washer Hose, Cut From 397155A2

1шт.

14

84222277

SWITCH

Rocker; Wiper, Front

1шт.

15

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

Washer Hose

1шт.

16

84560747

HOSE,4mm ID x 4100mm L

Front Washer; Cut From 87282056

1шт.

17

84562347

COUPLING

1шт.

Выбрано товаров: 19
