(88.090.11[01]) - DIA KIT, CANOPY CONVERSION WIDE -DLX

Запчасти Case 590SN (88.090.11[01]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES

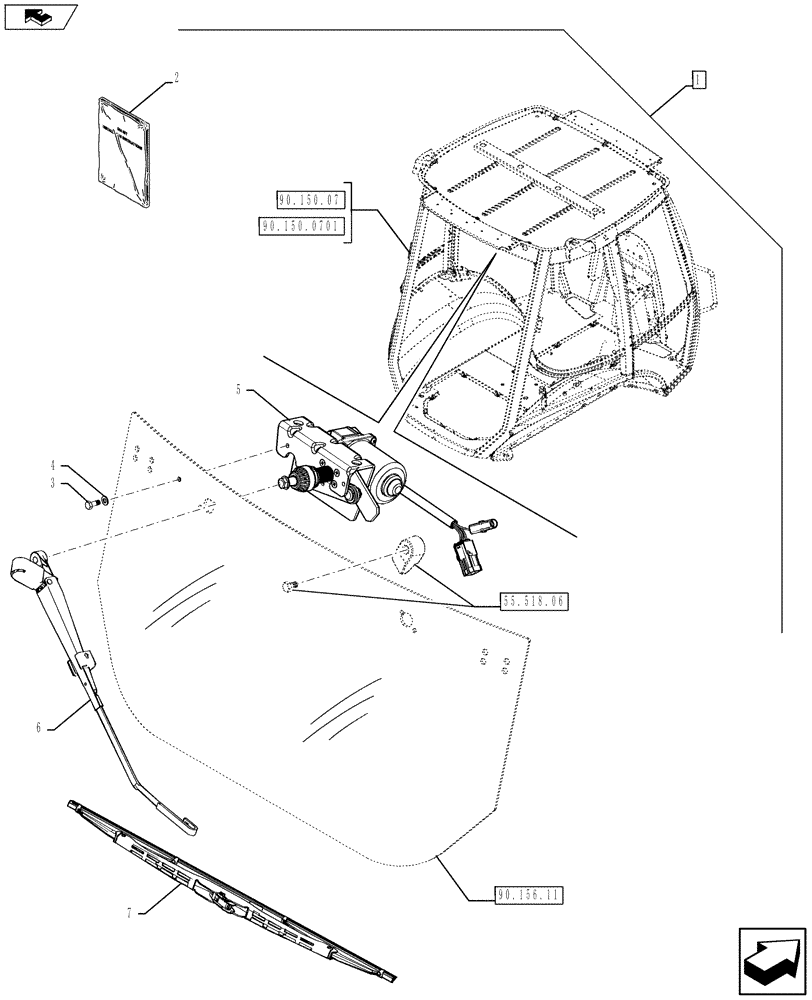

Схема запчастей Case 590SN - (88.090.11[01]) - DIA KIT, CANOPY CONVERSION WIDE -DLX (88) - ACCESSORIES
7
55.518.06
3
90.156.11
90.150.0701
home
90.150.07
6
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84410617

KIT

Canopy Conversion Wide -DLX, Incl 2 - 7, Serial Range: -`0

1шт.

See Ref. 88.090.11 [02] to 88.090.11 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84415726

INSTRUCTION

1шт.

3

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

4

892-11006

LOCK WASHER,M6

2шт.

5

87669381

WIPER MOTOR,12V

12V

1шт.

6

84562946

WIPER ARM,Single, 550mm

1шт.

7

87669761

WIPER BLADE,600mm L

1шт.
