(88.090.10[05]) - DIA KIT, DLX CONV - WIDE

Запчасти Case 590SN (88.090.10[05]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES

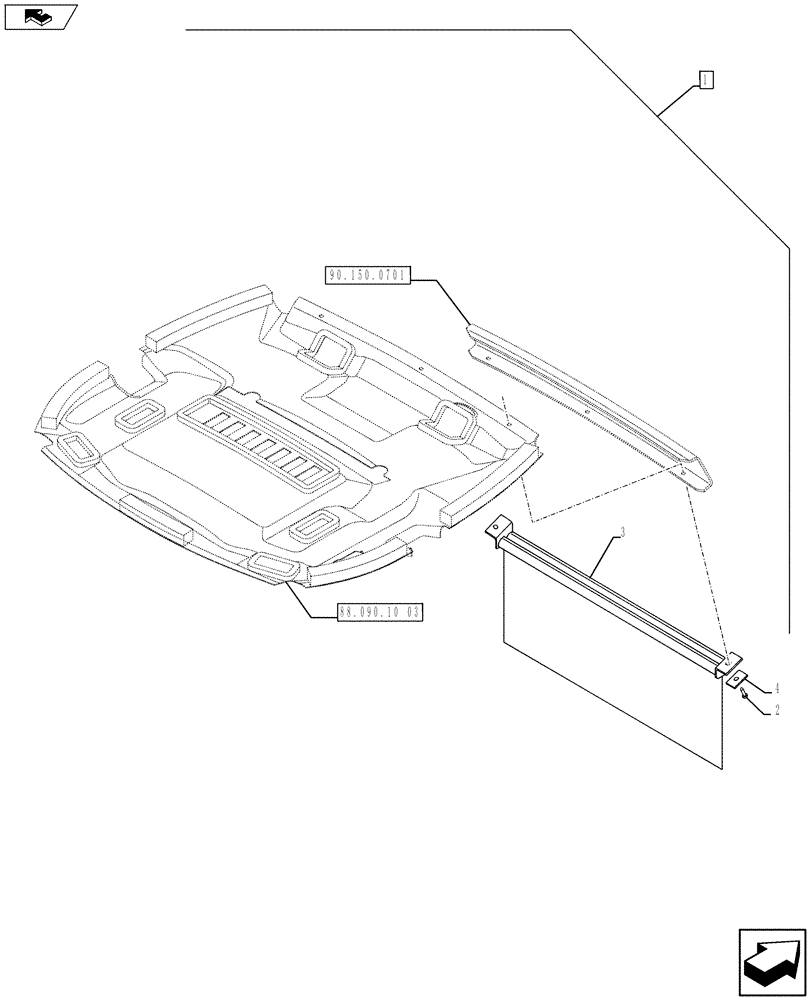

Схема запчастей Case 590SN - (88.090.10[05]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES
4
90.150.0701
3
1
home
88.090.10 03
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84482544

KIT

DLX CONV - Wide, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.090.10 [01] to 88.090.10 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

396516A1

SCREW,POINTED

3шт.

3

364180A1

VISOR, SUN

1шт.

4

409618A1

PLATE

2шт.
