(88.090.10[04]) - DIA KIT, DLX CONV - WIDE

Запчасти Case 590SN (88.090.10[04]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES

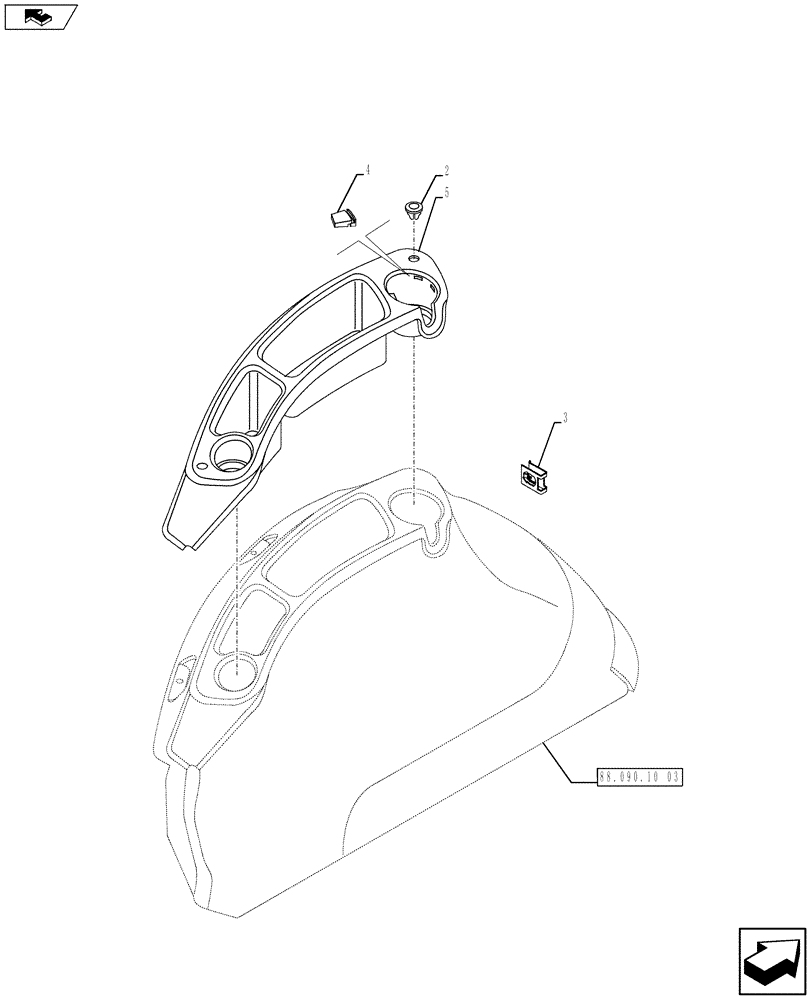

Схема запчастей Case 590SN - (88.090.10[04]) - DIA KIT, DLX CONV - WIDE (88) - ACCESSORIES
2
4
3
5
88.090.10 03
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84482544

KIT

DLX CONV - Wide, Incl 2 - 5, Serial Range: -`0

1шт.

See Ref. 88.090.10 [01] to 88.090.10 [03], 88.090.10 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

333773A1

PUSH-ON NUT

2шт.

3

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

3шт.

4

86992284

BUMPER,40-50 Durometer

4шт.

5

86992244

TRAY

Assy, Incl 4

1шт.
