(88.090.08[08]) - DIA KIT, CANOPY CONVERSION NARROW -DLX

Запчасти Case 590SN (88.090.08[08]) - DIA KIT, CANOPY CONVERSION NARROW -DLX (88) - ACCESSORIES

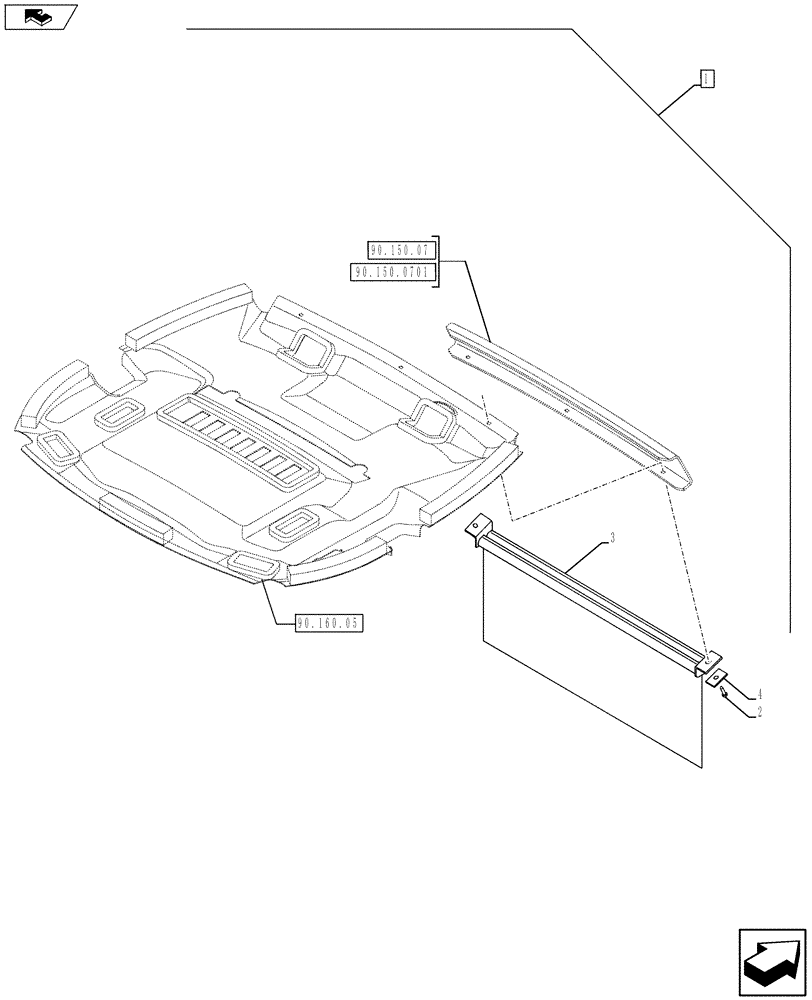

Схема запчастей Case 590SN - (88.090.08[08]) - DIA KIT, CANOPY CONVERSION NARROW -DLX (88) - ACCESSORIES
90.150.07
90.150.0701
1
3
2
home
90.160.05
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84410623

KIT

Canopy Conversion Narrow - DLX, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.090.08 [01] to 88.090.08 [07], 88.090.08 [09] to 88.090.08 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

396516A1

SCREW,POINTED

2шт.

3

364180A1

VISOR, SUN

1шт.

4

409618A1

PLATE

2шт.
