(88.090.08[04]) - DIA KIT, CANOPY CONVERSION NARROW -DLX

Запчасти Case 590SN (88.090.08[04]) - DIA KIT, CANOPY CONVERSION NARROW -DLX (88) - ACCESSORIES

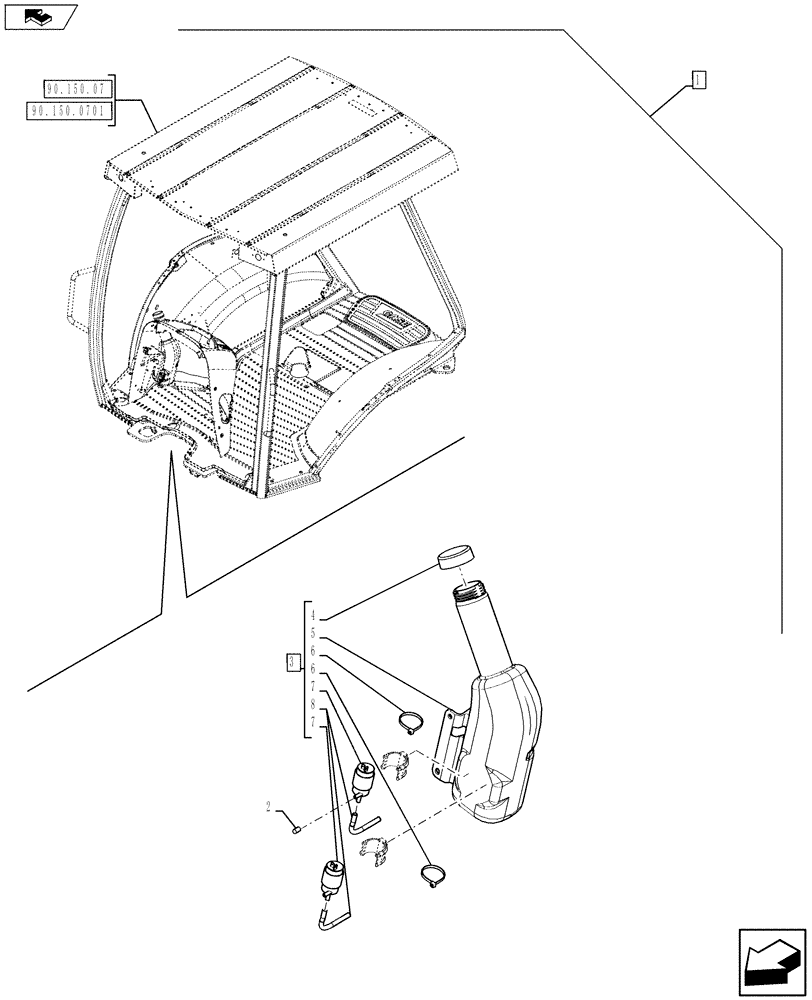

Схема запчастей Case 590SN - (88.090.08[04]) - DIA KIT, CANOPY CONVERSION NARROW -DLX (88) - ACCESSORIES
1
5
2
4
7
90.150.0701
8
3
90.150.07
6
6
home
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84410623

KIT

Canopy Conversion Narrow - DLX, Incl 2 - 8, Serial Range: -`0

1шт.

See Ref. 88.090.08 [01] to 88.090.08 [03], 88.090.08 [05] to 88.090.08 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87441758

CAP

1шт.

3

87675209

RESERVOIR, WINDSHIEL

Assy, Incl 4 - 8

1шт.

4

87711985

FILLER CAP

1шт.

5

87675208

RESERVOIR, WINDSHIEL

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

7

86507198

PUMP,Windshield Washer

2шт.

8

87700794

HOSE WASHER,4.76 mm ID x 135.00 mm

2шт.
