Запчасти Case 590SN (88.090.05) - DIA KIT, EXTERNAL REAR VIEW MIRROR (88) - ACCESSORIES

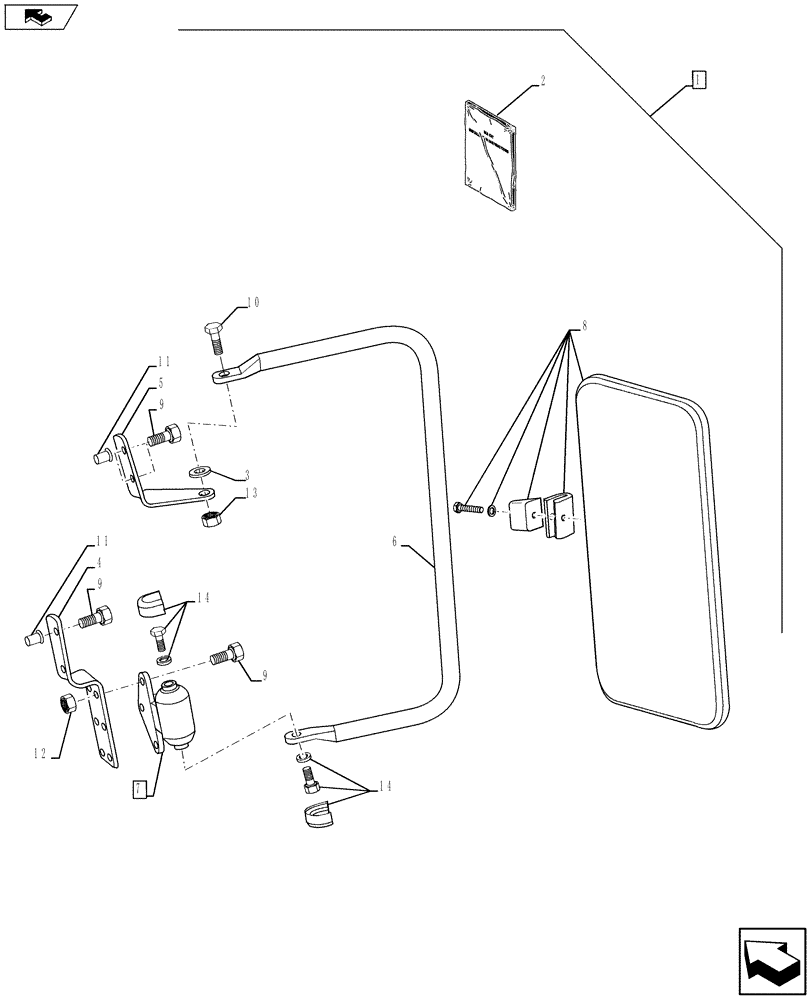

Схема запчастей Case 590SN - (88.090.05) - DIA KIT, EXTERNAL REAR VIEW MIRROR (88) - ACCESSORIES
6
9
11
7
4
1
9
9
11
14
home
10
12
13
2
8
5
14
3

Артикул

Название

Примечание

Количество

1

397974A1

CONSTRUCTION DIA

External Rear View Mirror, Incl 1 - 14, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84375796

INSTRUCTION

1шт.

3

A167037

WASHER

2шт.

4

402936A1

BRACKET

Lower

2шт.

5

402933A1

BRACKET

Upper; Right-Hand

1шт.

5

402934A1

BRACKET

Upper; Left-Hand

1шт.

6

402935A1

SUPPORT TUBE

2шт.

7

D142144

HINGE

Assy, Incl 14

2шт.

8

R54682

MIRROR

Exterior

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

255447A1

THREADED INSERT

Cab Front ROPS Post

10шт.

12

131-71

NUT

6шт.

13

131-665

LOCK NUT,5/16"-18, GB

2шт.

14

NSS

NOT SOLD SEPARAT

Covers and Attaching Parts, Incl in 7

1шт.

Выбрано товаров: 16
