(88.090.04) - DIA KIT, CHAFF SCREEN

Запчасти Case 590SN (88.090.04) - DIA KIT, CHAFF SCREEN (88) - ACCESSORIES

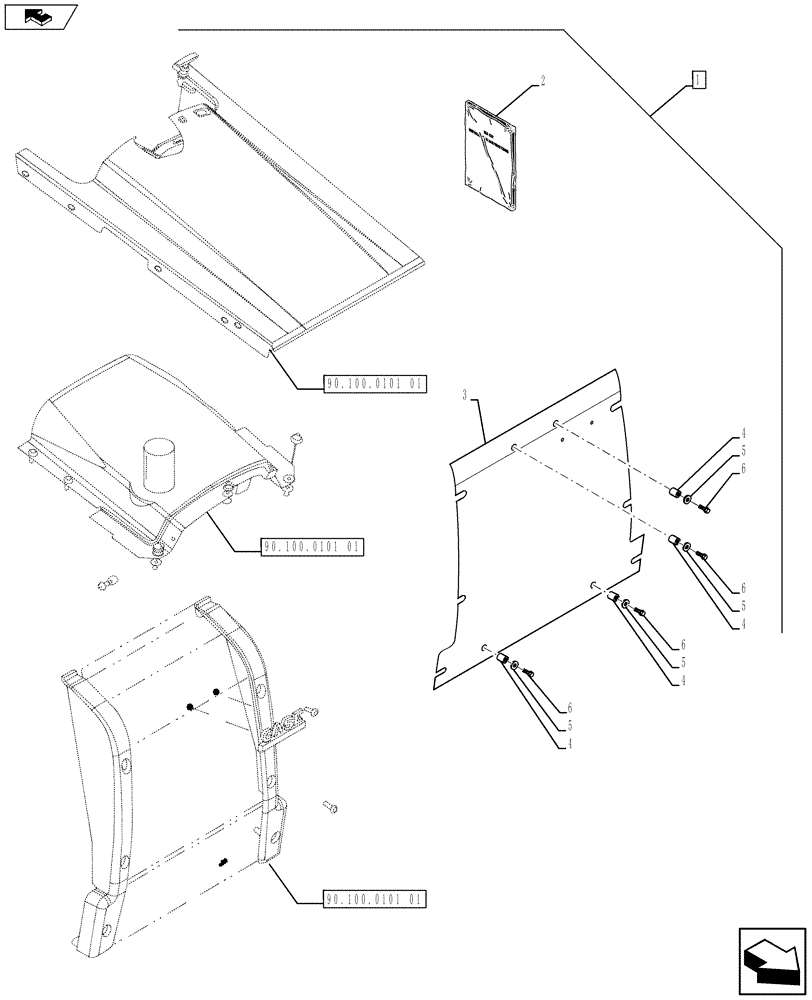

Схема запчастей Case 590SN - (88.090.04) - DIA KIT, CHAFF SCREEN (88) - ACCESSORIES
home
5
6
6
90.100.0101 01
4
5
90.100.0101 01
3
5
4
1
5
4
6
4
90.100.0101 01
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87726054

SERVICE KIT

Chaff Screen, Incl 2 - 6, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84375719

INSTRUCTION

1шт.

3

87726055

SCREEN,1.90mm Perforation

Chaff

1шт.

4

255447A1

THREADED INSERT

4шт.

5

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 x 25 x 1.6 mm

4шт.

6

257381A1

BOLT

1/4 NF x 3/4

4шт.
