(88.090.02) - DIA KIT, MALE - HOLD OPEN LATCH

Запчасти Case 590SN (88.090.02) - DIA KIT, MALE - HOLD OPEN LATCH (88) - ACCESSORIES

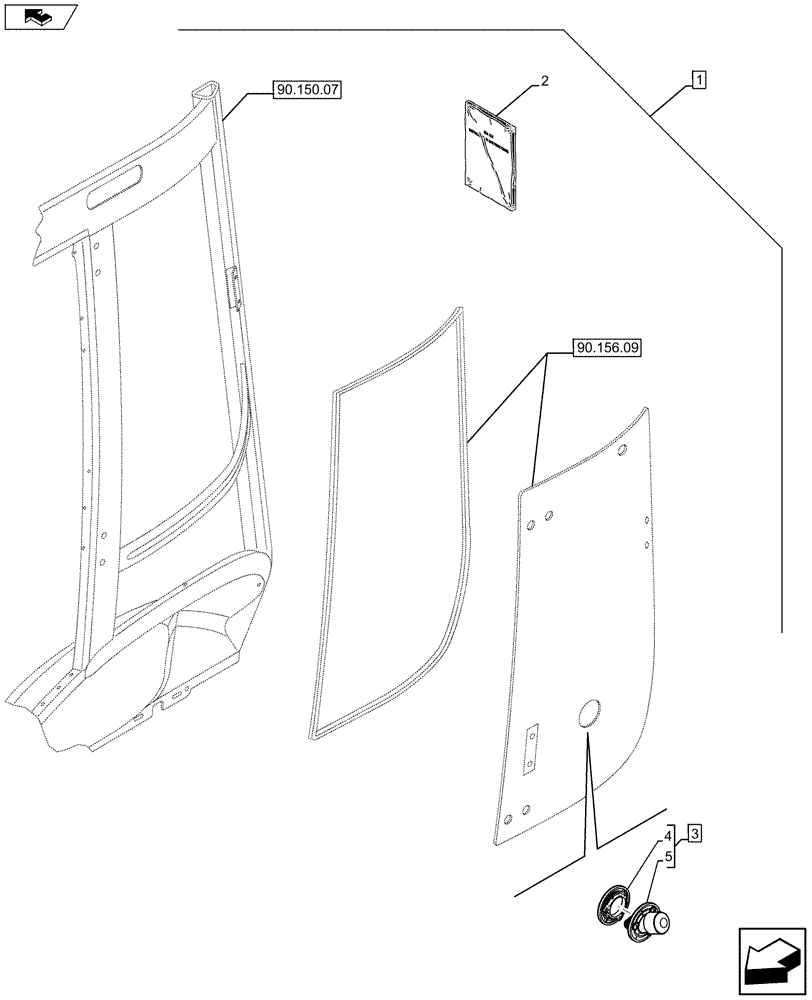

Схема запчастей Case 590SN - (88.090.02) - DIA KIT, MALE - HOLD OPEN LATCH (88) - ACCESSORIES
3
5
1
90.150.07
home
4
90.156.09
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84427154

CONSTRUCTION DIA

Male, DLP Hold Open Latch, Incl 2 - 4, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84427156

INSTRUCTION

1шт.

3

84403979

LATCH

Assy, Incl 4 - 5

1шт.

4

84355909

RING,85.3mm OD, 44mm ID

1шт.

5

NSS

NOT SOLD SEPARAT

Latch, Incl in 3

1шт.
