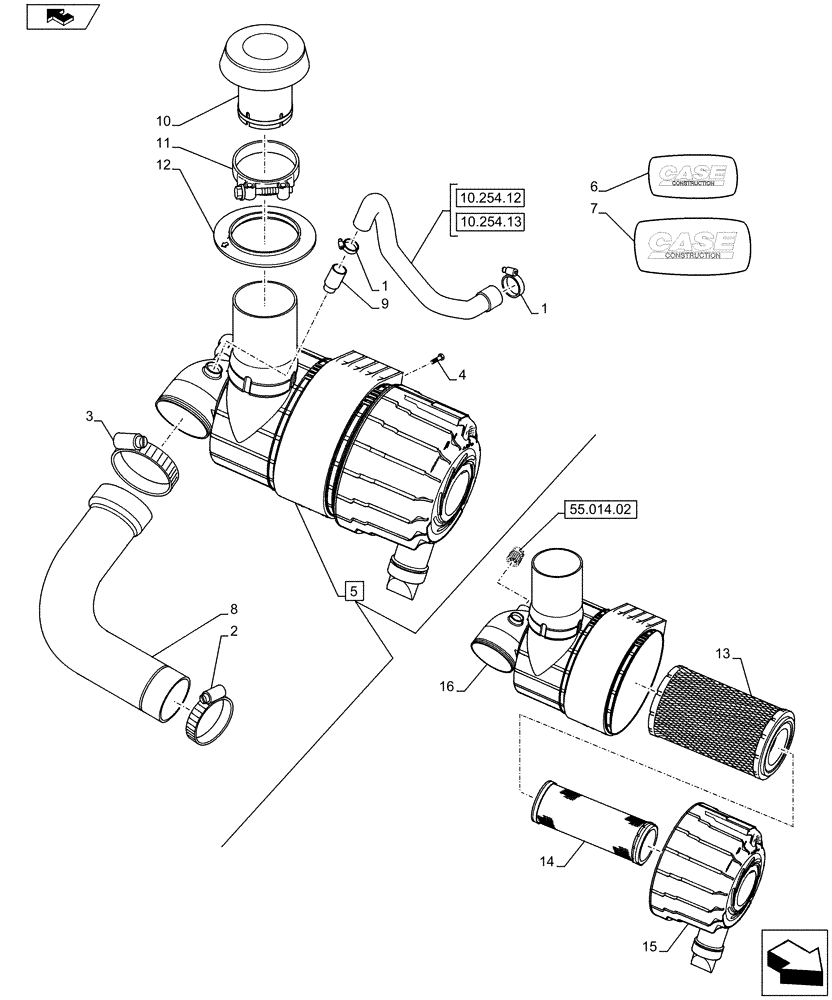

Запчасти Case 590SN (10.202.02) - AIR CLEANER (10) - ENGINE

1

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

2

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

3

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

5

84535708

AIR CLEANER

ASSY, Incl 13 - 16

1шт.

See Air Cleaner Components also in Figure 55.014.030

1шт.

6

84558035

DECAL,70mm x 58mm H

2шт.

7

84558036

DECAL,66mm x 33mm H

1шт.

8

87687235

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 300.00 mm, SAE J20

1шт.

9

L17985

FITTING,3/8" - 18 NPT

1шт.

10

85804602

CAP

1шт.

11

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

12

84123381

SEAL,95mm ID x 145mm OD x 12mm Thk

1шт.

13

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

14

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Assembly, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Body Assembly, Incl in 1

1шт.
