Запчасти Case 590SN (88.084.15[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES

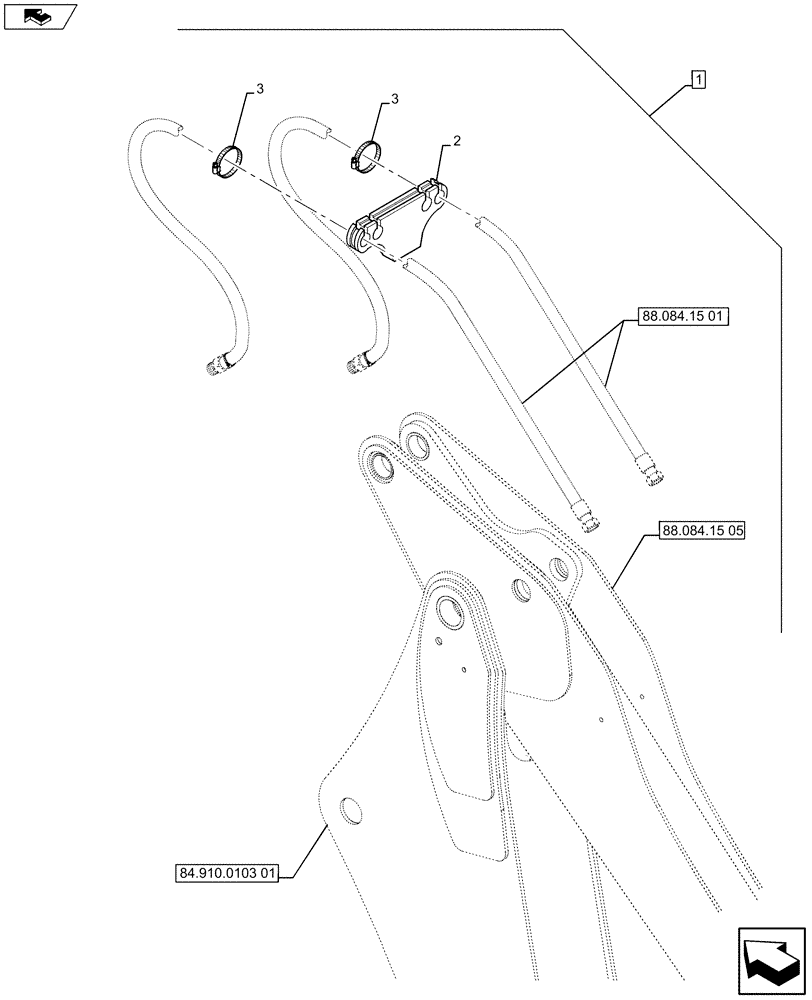

Схема запчастей Case 590SN - (88.084.15[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH HAND SWING (88) - ACCESSORIES
1
3
3
88.084.15 01
home
88.084.15 05
2
84.910.0103 01

Артикул

Название

Примечание

Количество

1

84540613

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Hand Swing, Incl 2 - 3

1шт.

See Ref. 88.084.15 [01] to 88.084.15 [06], 88.084.15 [08] to 88.084.15 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84360628

SUPPORT

1шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

Выбрано товаров: 5
