Запчасти Case 590SN (88.084.14[11]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

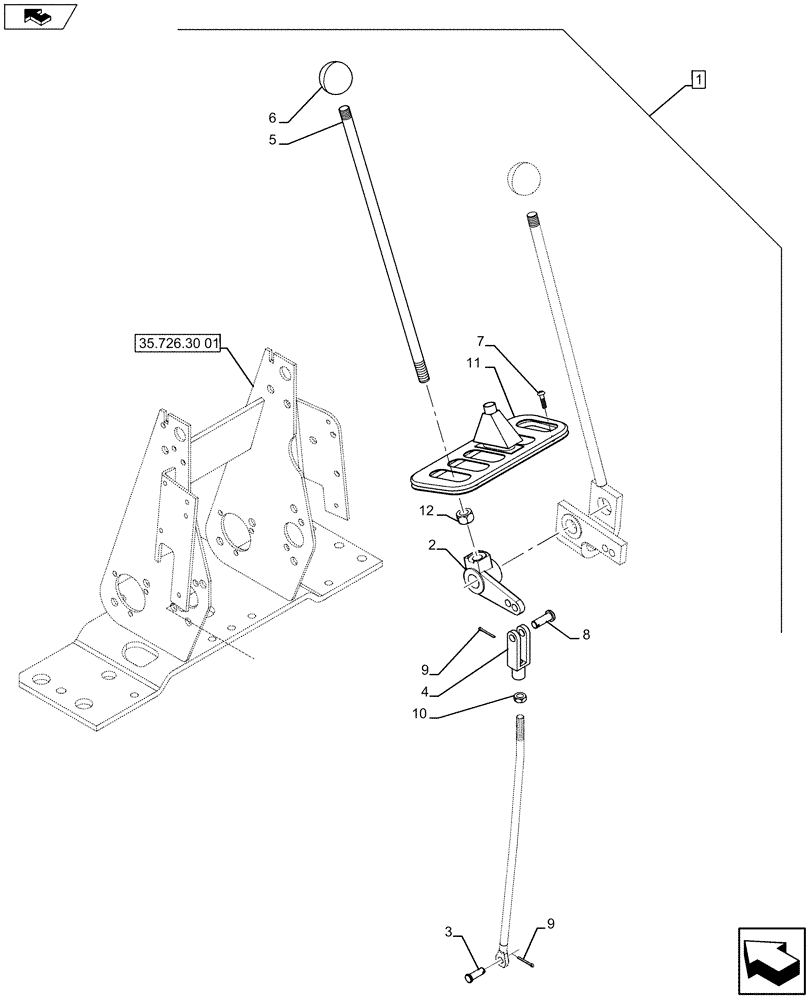

Схема запчастей Case 590SN - (88.084.14[11]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES
9
home
7
10
8
4
3
35.726.30 01
2
5
9
6
1
12
11

Артикул

Название

Примечание

Количество

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 12

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [10], 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

182006A1

LEVER

1шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

4

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

5

136263A1

ROD,12.7mm OD x 407mm L

1шт.

6

L54563

KNOB

1шт.

7

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

8

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

2шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

D149867

BOOT

1шт.

12

425-118

NUT,1/2"-20, G5

1шт.

Выбрано товаров: 14
