Запчасти Case 590SN (88.084.14[10]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

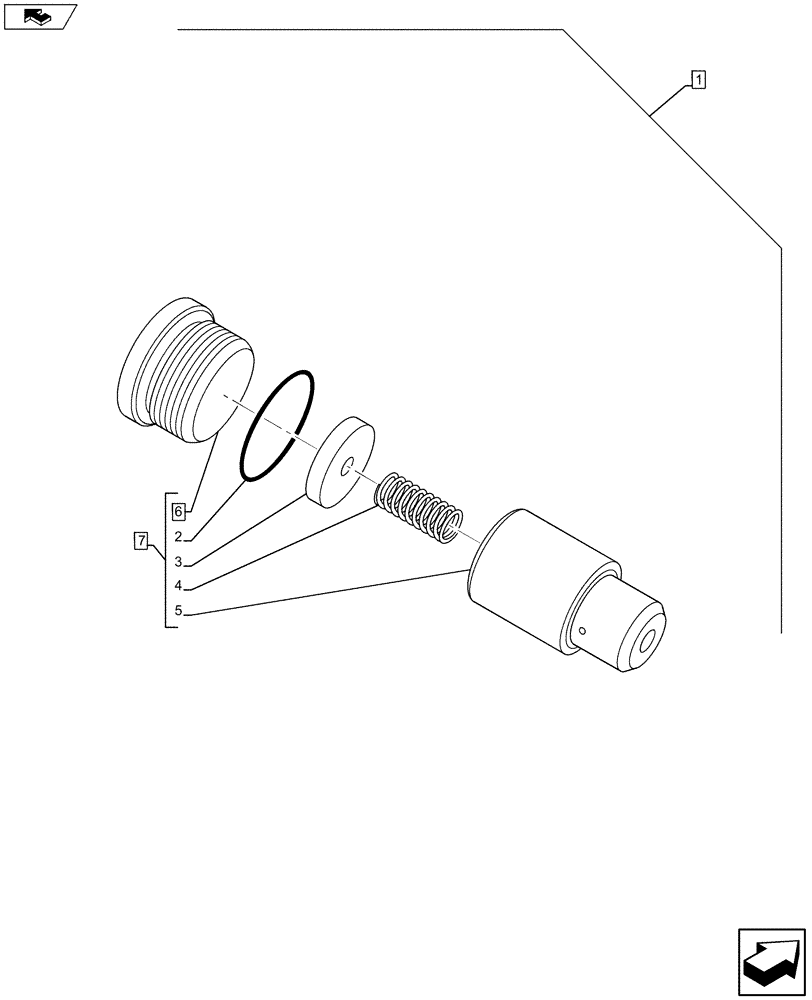

Схема запчастей Case 590SN - (88.084.14[10]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES
home
7
2
6
1
4
5
3

Артикул

Название

Примечание

Количество

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 7

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [09], 88.084.14 [11] to 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87455974

O-RING,0.097" Thk x 0.755" ID

1шт.

3

87455594

WASHER

1шт.

4

87455595

SPRING

1шт.

5

87455596

PISTON

1шт.

6

87455593

PLUG,7/8" - 14 ORB

Assy, Incl 2

1шт.

7

87428486

VALVE, CHECK

Assy, Incl 2 - 6

1шт.

Выбрано товаров: 9
