Запчасти Case 590SN (88.084.14[08]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

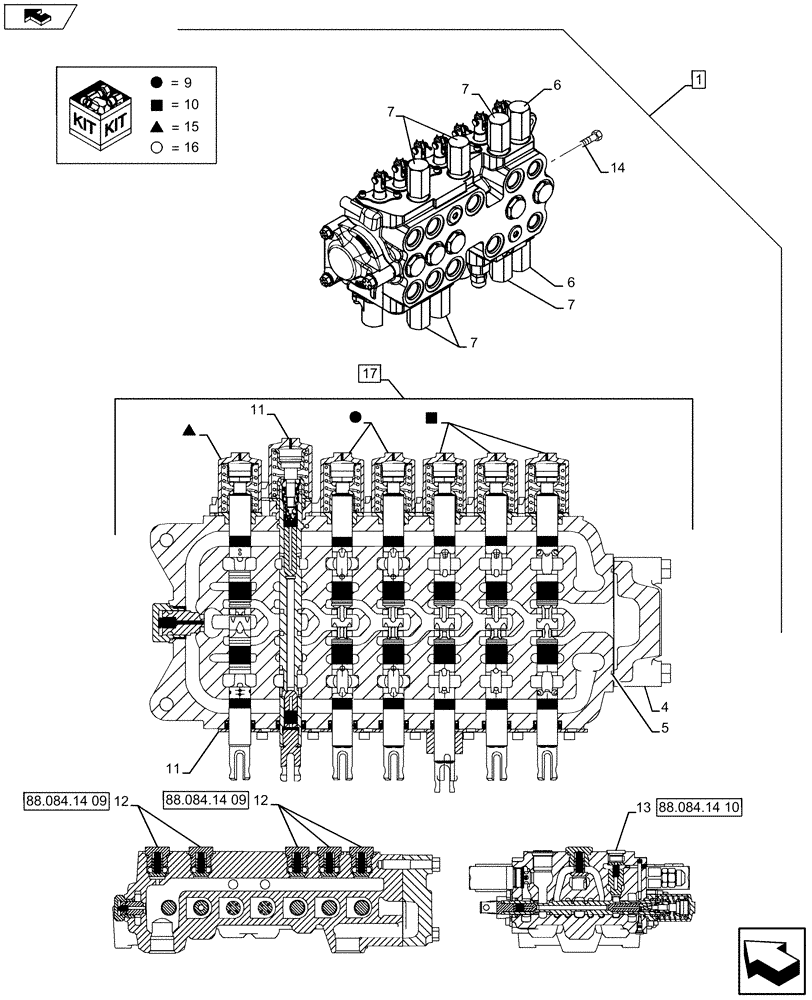

Схема запчастей Case 590SN - (88.084.14[08]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES
10
12
6
7
7
9
88.084.14 09
12
16
5
1
11
home
88.084.14 10
14
6
11
9
88.084.14 09
17
13
4
7
15
7
15
10

Артикул

Название

Примечание

Количество

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 17

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [07], 88.084.14 [09] to 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87428491

SCREW,Hex

2шт.

3

87428492

SCREW,Hex

1шт.

4

87433030

OUTLET

1шт.

5

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

6

84296800

VALVE PRESSURE RELIE

2шт.

7

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

Adjustable

6шт.

Set the Relief to the Setting of the One that is Being Replaced

1шт.

8

84296862

KIT

1шт.

9

84296826

SERVICE KIT

2шт.

10

84296859

KIT

3шт.

11

84315193

SEAL

7шт.

12

87426238

VALVE, CHECK

Assy

5шт.

13

87428486

VALVE, CHECK

Assy

1шт.

14

81868381

CHECK VALVE,1-1/16" - 12

1шт.

15

84296861

SERVICE KIT

1шт.

16

84296786

SEAL KIT

1шт.

17

84273238

VALVE

1шт.
