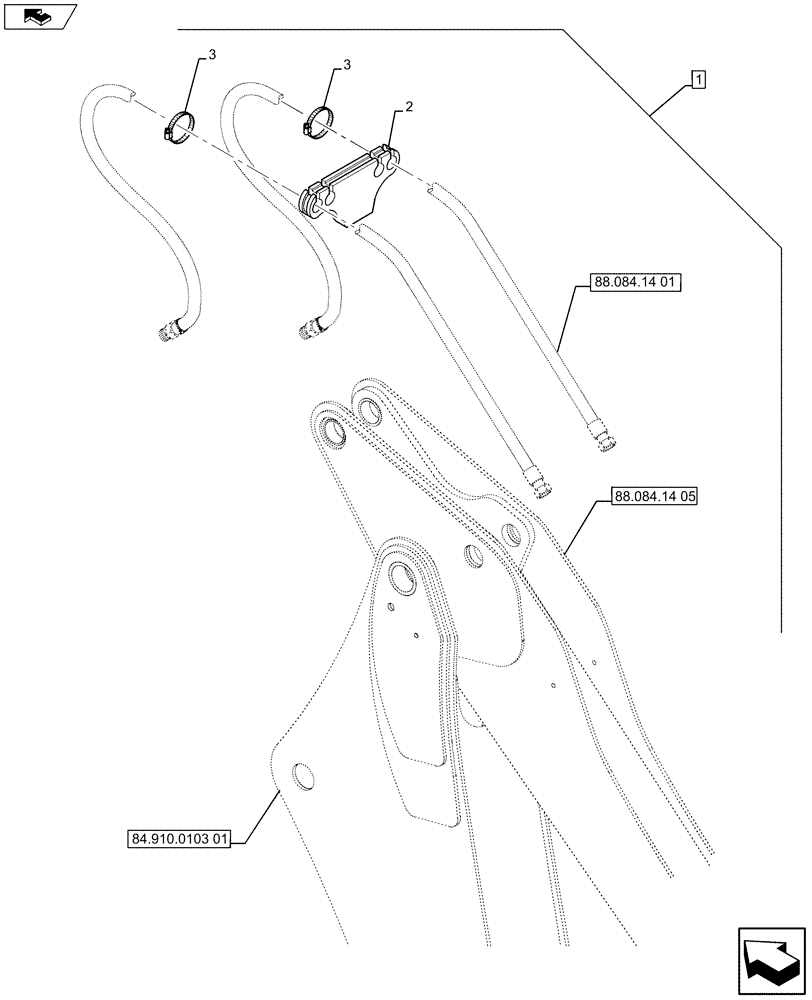

Запчасти Case 590SN (88.084.14[07]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 3

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [06], 88.084.14 [08] to 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84360628

SUPPORT

1шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
