Запчасти Case 590SN (88.084.14[05]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

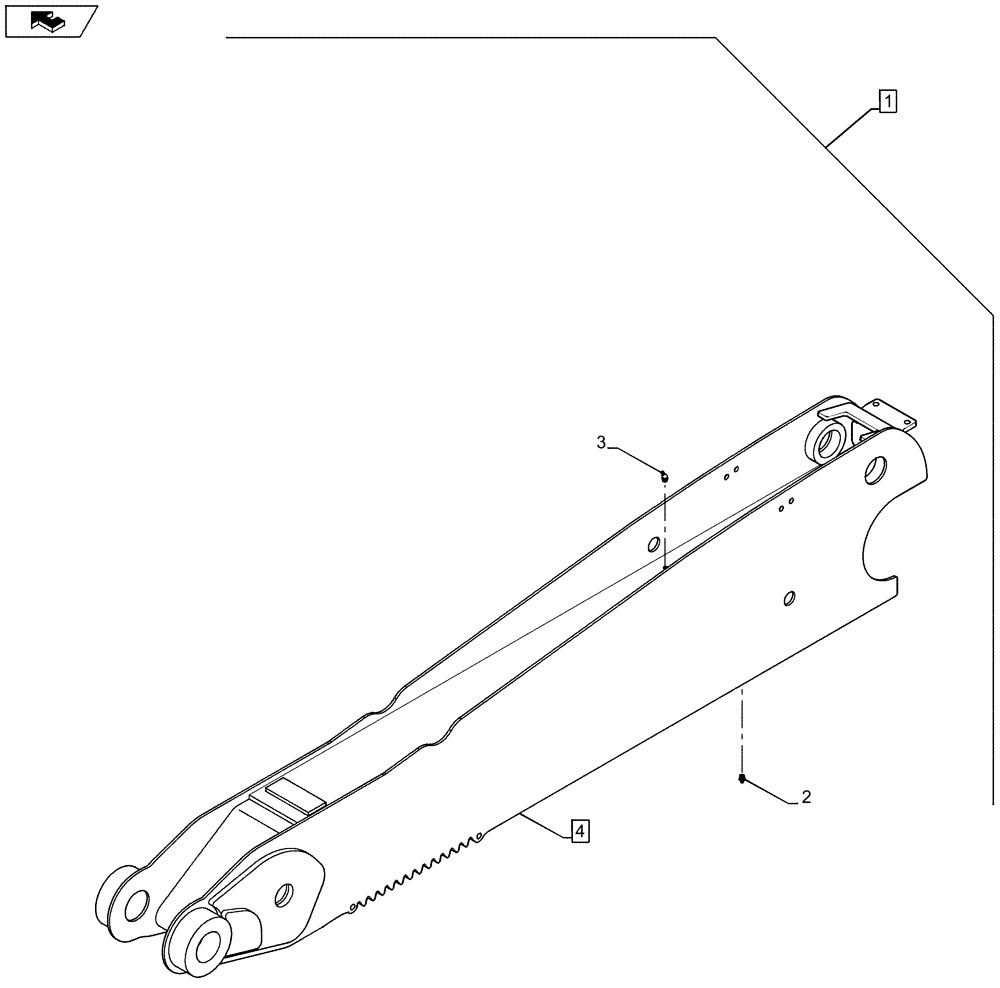

Схема запчастей Case 590SN - (88.084.14[05]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES
4
home
2
1
3

Артикул

Название

Примечание

Количество

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 4

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [04], 88.084.14 [06] to 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

3

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

4

84478840

DIPPER

1шт.

Выбрано товаров: 6
