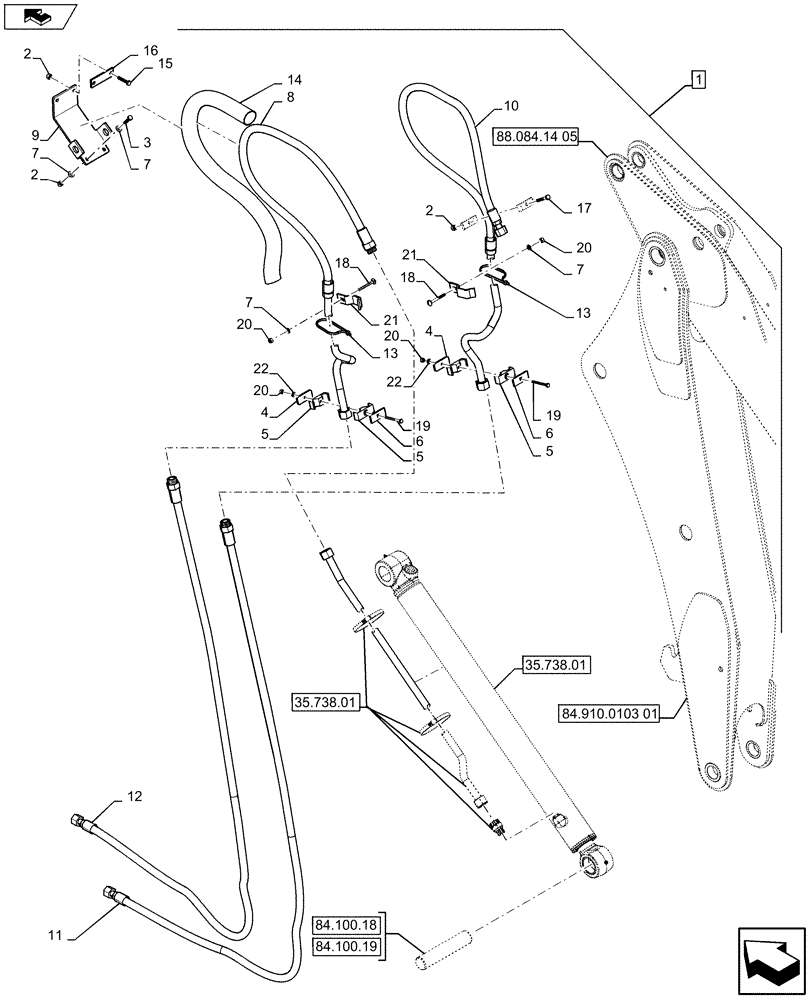

Запчасти Case 590SN (88.084.14[03]) - DIA KIT, CONVERT STANDARD DIPPER TO EXTENDABLE HOE WITH FOOT SWING (88) - ACCESSORIES

1

84540607

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Hoe with Foot Swing, Incl 2 - 22

1шт.

See Ref. 88.084.14 [01] to 88.084.14 [02], 88.084.14 [04] to 88.084.14 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

412141

NUT,M10 x 1.5, Cl 8

5шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

84342644

PLATE

2шт.

5

87000152

CLAMP,25.4mm D Clamping Pipes x 2

2шт.

6

84283495

SECURING STRAP

2шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

8

84280711

HYD TUBE

1шт.

9

84371413

BRACKET

1шт.

10

84283817

HYD TUBE

1шт.

11

84264049

HOSE ASSY.,19.05mm ID x 2772mm L, SAE 100R16

1шт.

12

84264050

HOSE ASSY.,19mm ID x 2814mm L

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

14

84373396

SLEEVE,1277mm L

2шт.

15

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

16

101479A1

SUPPORT

1шт.

17

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

1шт.

18

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

19

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

20

412250

NUT,M8 x 1.25, Cl 8

4шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.
