Запчасти Case 590SN (88.084.11) - DIA KIT, BOOM GUARD - STANDARD DIPPER (88) - ACCESSORIES

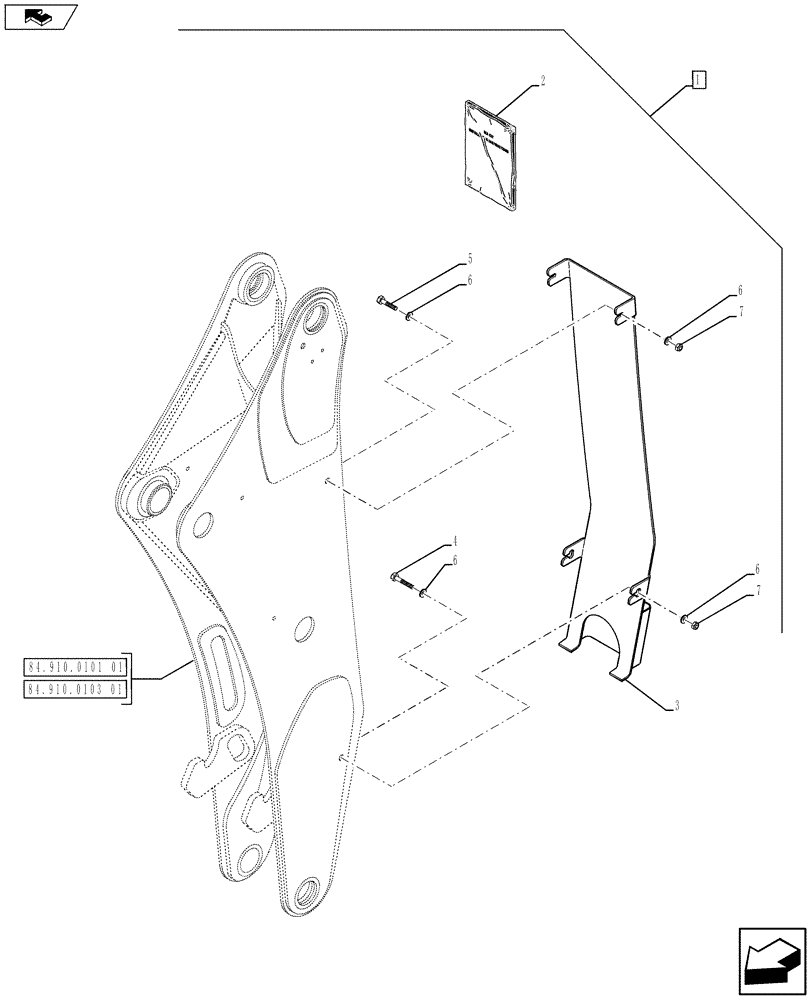

Схема запчастей Case 590SN - (88.084.11) - DIA KIT, BOOM GUARD - STANDARD DIPPER (88) - ACCESSORIES
home
6
2
84.910.0103 01
7
4
5
3
6
6
84.910.0101 01
1
6
7

Артикул

Название

Примечание

Количество

1

84395141

CONSTRUCTION DIA

Boom Guard, Standard Dipper, Incl 2 - 7, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84395142

INSTRUCTION

1шт.

3

84260388

GUARD

1шт.

4

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

5

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

Выбрано товаров: 8
