Артикул
Название
Примечание
Количество
1
84571018

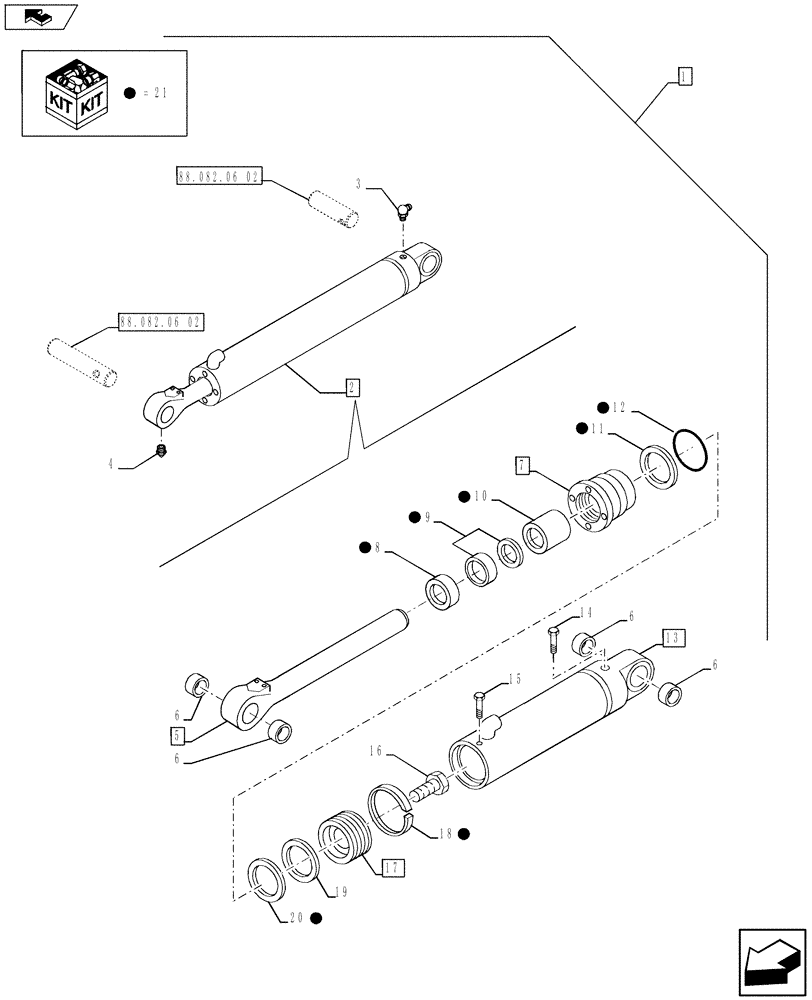

BUCKET
93 in 4-in-1, Incl 2 - 21, Serial Range: -`0
1шт.
See Ref. 88.082.06 [01] to 88.082.06 [03], 88.082.06 [05] to 88.082.06 [07]
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
2
87455458
HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke
1шт.
3
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
5
1346195C1
PISTON ROD
Assy, Incl 6
1шт.
6
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
4шт.
7
1542987C1
GLAND
Assy, Incl 8 - 12
1шт.
8
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
1шт.
10
G102425
BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk
1шт.
11
G109298
RING,69.47mm ID x 75.57mm OD x 1.4mm Thk
1шт.
12
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
1шт.
13
87454908
BARREL
Assy, Incl 6
1шт.
14
353-780
PLUG,Sltd Hd, 7/8"-14, w/O-Ring
2шт.
15
G109395
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
1шт.
16
86982437
BOLT,Sems, Hex, 1" - 14 x 2.50"
1шт.
17
1340797C1
PISTON ASSY.
Assy, Incl 18 - 20
1шт.
Выбрано товаров: 23
