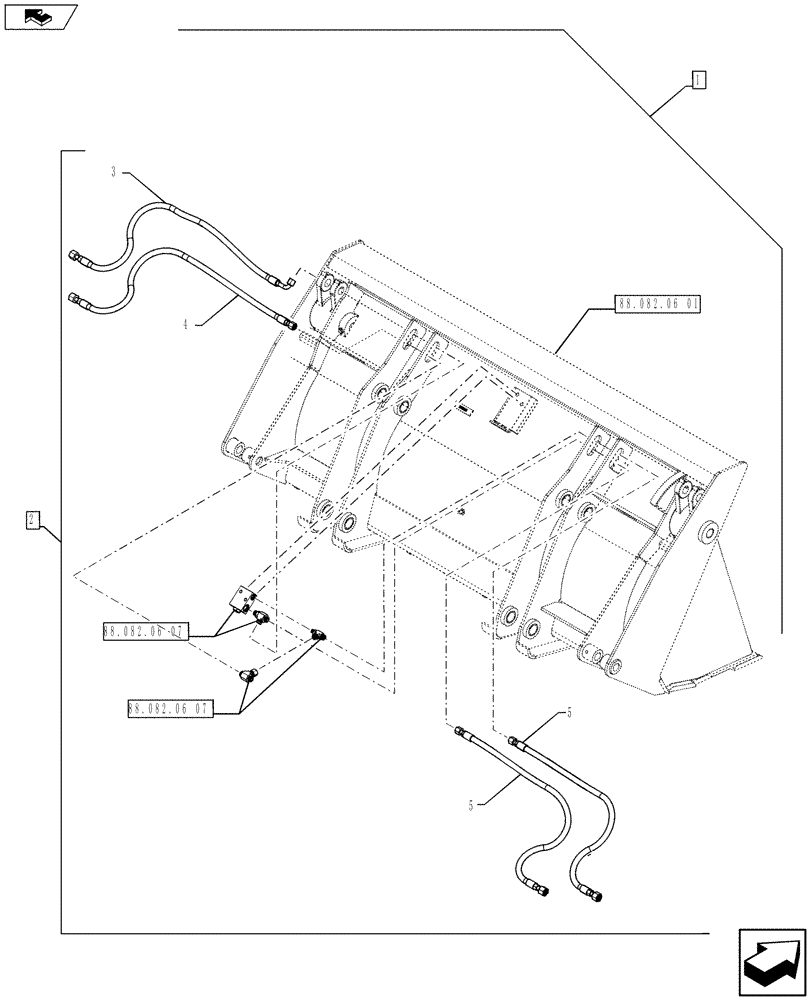

Запчасти Case 590SN (88.082.06[03]) - DIA KIT, LOADER BUCKET 4-IN-1 (93 IN) (88) - ACCESSORIES

1

84571018

BUCKET

93 in 4-in-1, Incl 2 - 5, Serial Range: -`0

1шт.

See Ref. 88.082.06 [01] to 88.082.06 [02], 88.082.06 [04] to 88.082.06 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84423017

BUCKET

93 in 4-in-1, Incl 3 - 5

1шт.

3

84231568

HOSE ASSY.,12.5mm ID x 1296mm L, SAE 100R16 Type S

1шт.

4

84231569

HOSE ASSY.,12.5mm ID x 1306mm L, SAE100R16 Type S

1шт.

5

84231565

HOSE ASSY.,12.5mm ID x 1194mm L, SAE 100R16 Type S

2шт.
