Запчасти Case 590SN (88.082.06[01]) - DIA KIT, LOADER BUCKET 4-IN-1 (93 IN) (88) - ACCESSORIES

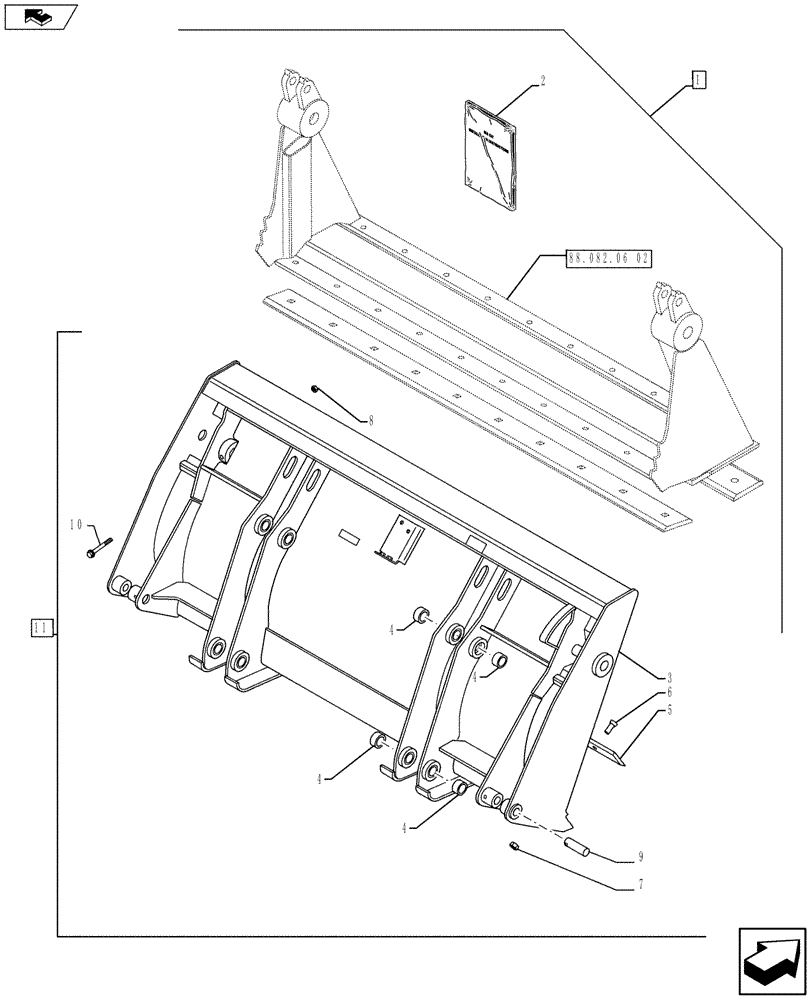

Схема запчастей Case 590SN - (88.082.06[01]) - DIA KIT, LOADER BUCKET 4-IN-1 (93 IN) (88) - ACCESSORIES
2
4
5
3
1
7
10
9
88.082.06 02
6
11
4
8
4
4
home

Артикул

Название

Примечание

Количество

1

84571018

BUCKET

93 in 4-in-1, Incl 2 - 11, Serial Range: -`0

1шт.

See Ref. 88.082.06 [02] to 88.082.06 [07],Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84479217

INSTRUCTION

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

4

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

5

133542A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2359mm L

1шт.

6

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

7

29-1010

NUT,5/8"-11, G8

10шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

D51391

PIN,15mm OD x 74mm L

2шт.

10

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

11

84423017

BUCKET

93 in 4-in-1, Incl 3 - 10

1шт.

Выбрано товаров: 12
