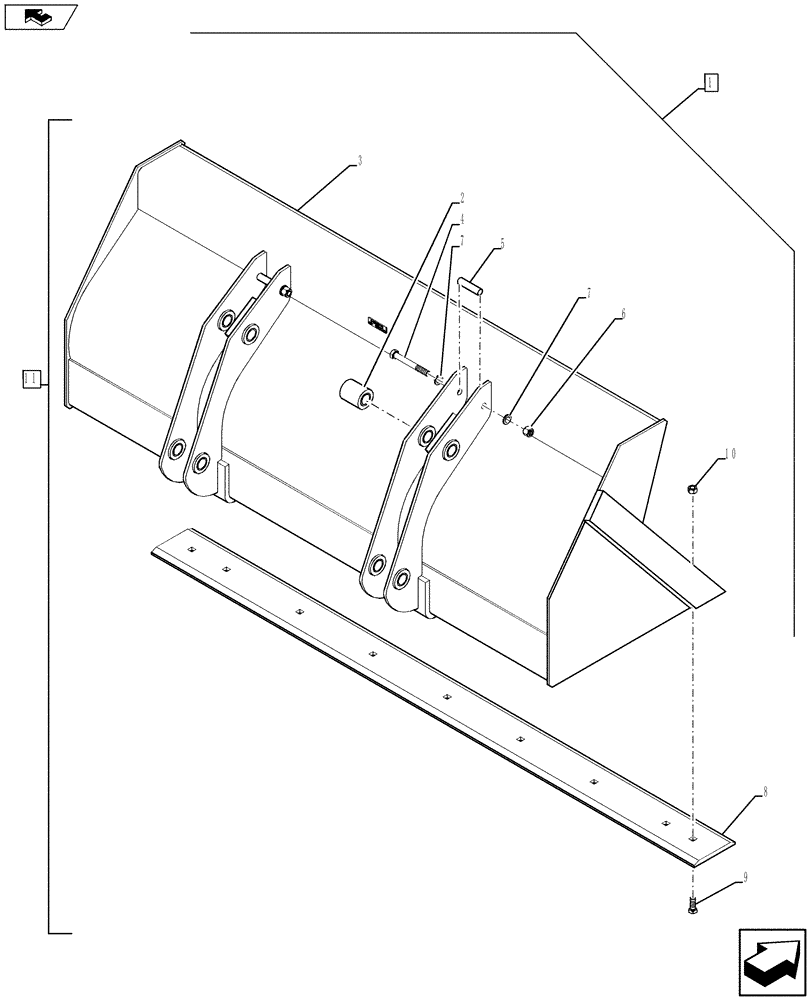

Запчасти Case 590SN (88.082.01) - DIA KIT, BUCKET W/CUTTING EDGE (93 IN) (88) - ACCESSORIES

1

84482604

BUCKET

93 IN with Cutting Edge, Incl 2 -11

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

2шт.

3

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

1шт.

4

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

5

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

6

412180

NUT,M20 x 2.5, Cl 8

2шт.

7

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

8

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

1шт.

9

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

10

29-1012

NUT,3/4"-10, G8

10шт.

11

84422637

BUCKET,93 Inch W/ Cutting Edge

Assy, Incl 2 - 10

1шт.
