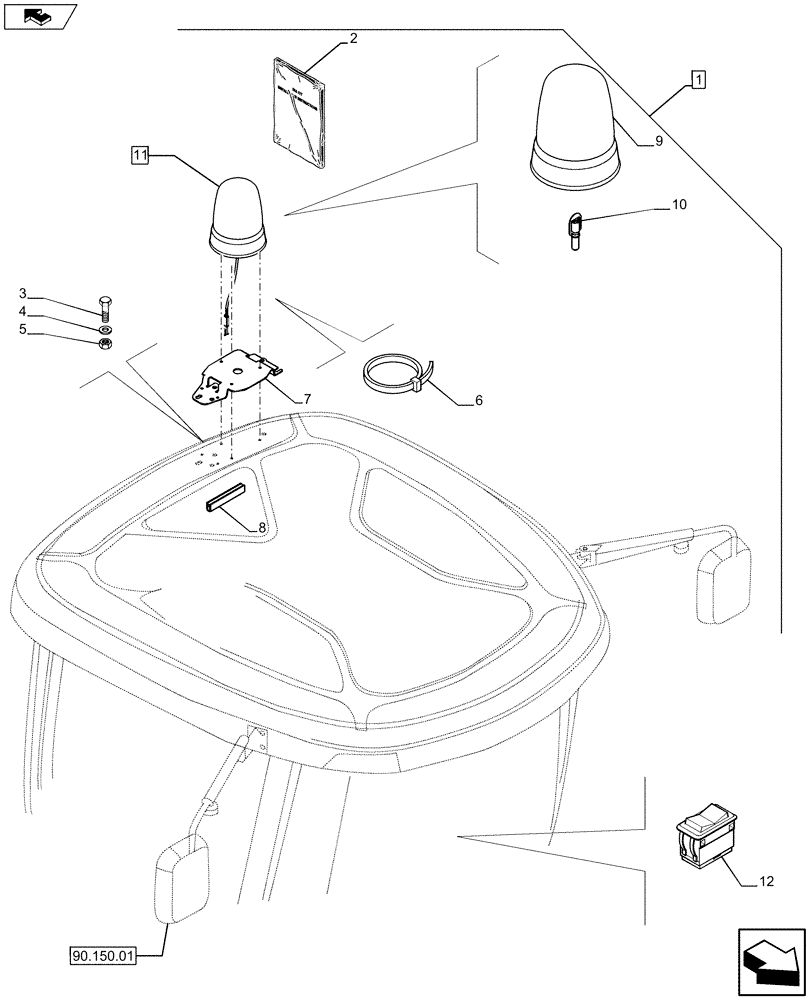

Запчасти Case 590SN (88.055.07) - DIA KIT, ROTARY BEACON (88) - ACCESSORIES

1

84410613

CONSTRUCTION DIA

Rotary Beacon, Incl 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84410614

INSTRUCTION

1шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

5

412141

NUT,M10 x 1.5, Cl 8

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

7

84521992

BRACKET

1шт.

8

84522327

SOFT TRIM

1шт.

9

84344644

LENS

1шт.

10

3217312R1

BULB,H1, 12V, 55W

1шт.

11

84337824

BEACON,12V, 55W, Amber

Assy, Incl 9 - 10

1шт.

12

84222284

BEACON SWITCH

1шт.
