(88.055.06) - DIA KIT, HARNESS, KIT, BRAKE ENABLE DE-CLUTCH

Запчасти Case 590SN (88.055.06) - DIA KIT, HARNESS, KIT, BRAKE ENABLE DE-CLUTCH (88) - ACCESSORIES

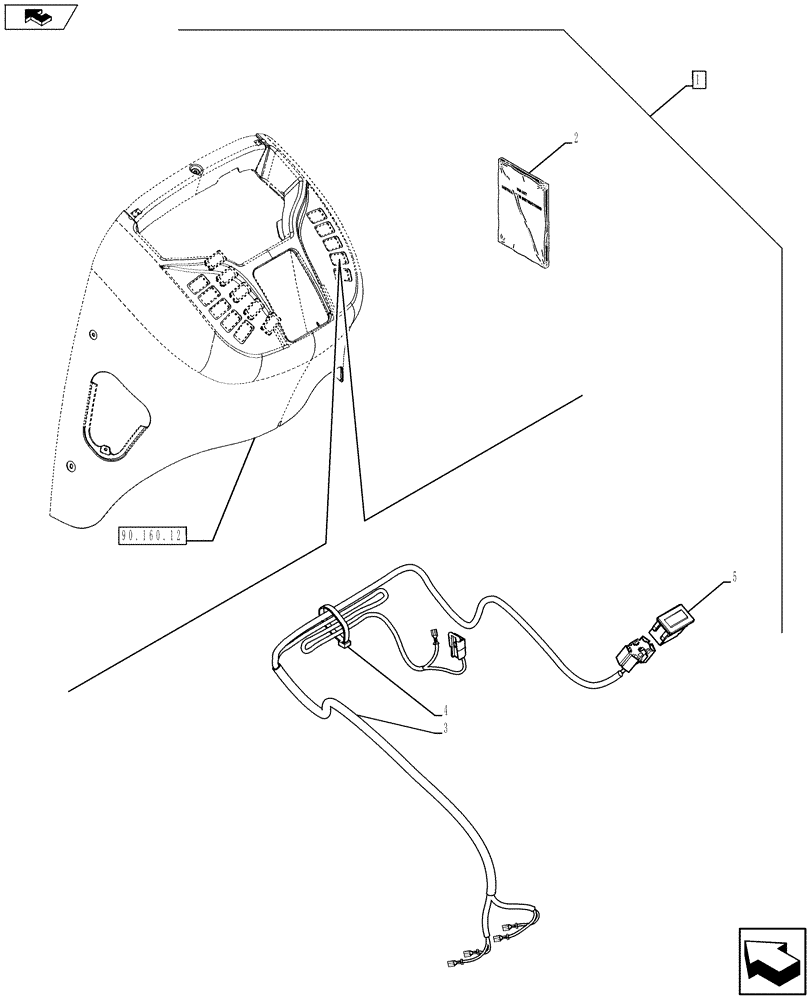

Схема запчастей Case 590SN - (88.055.06) - DIA KIT, HARNESS, KIT, BRAKE ENABLE DE-CLUTCH (88) - ACCESSORIES
3
home
1
5
4
2
90.160.12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342198

CONSTRUCTION DIA

Harness, Kit, Brake Enable De-clutch, Incl 2 - 5

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84369365

INSTRUCTION

1шт.

3

84290781

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

5

370132A1

SWITCH

1шт.
