Запчасти Case 590SN (88.055.03) - DIA KIT, DUAL BATTERY (88) - ACCESSORIES

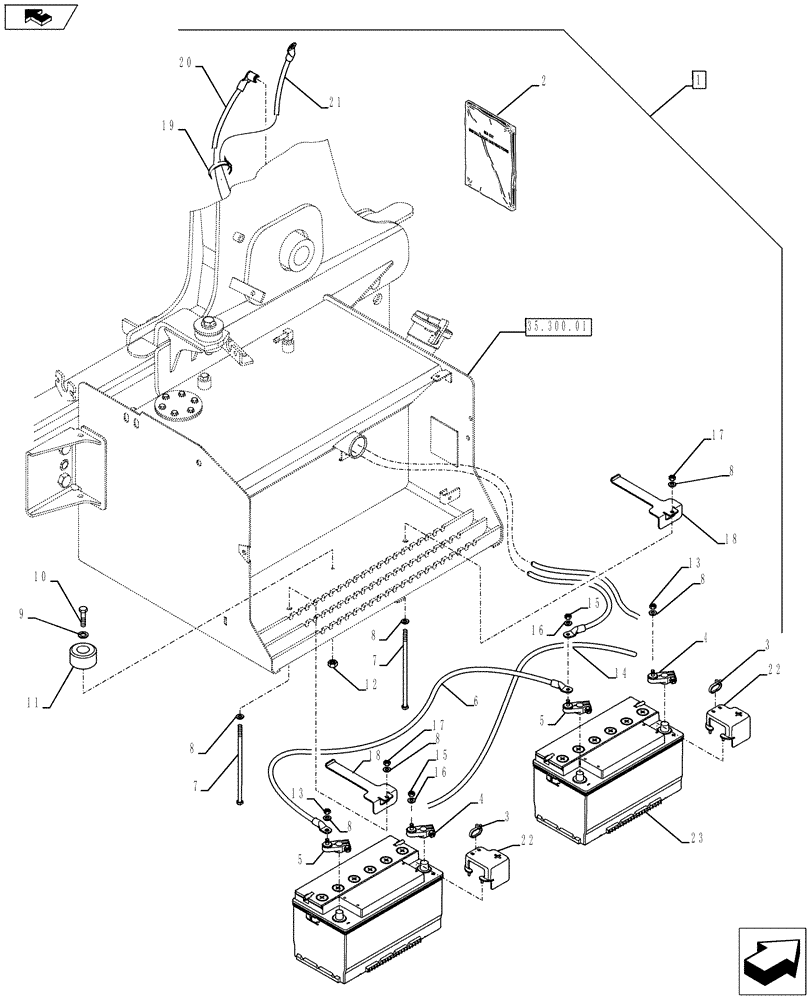

Схема запчастей Case 590SN - (88.055.03) - DIA KIT, DUAL BATTERY (88) - ACCESSORIES
12
17
8
35.300.01
15
11
8
8
3
16
1
4
22
5
16
8
22
5
7
23
20
14
19
10
21
15
8
4
17
13
6
9
13
8
3
2
18
7
18
home

Артикул

Название

Примечание

Количество

1

87722930

CONSTRUCTION DIA

Dual Battery, Incl 2 - 23, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84376310

INSTRUCTION

1шт.

3

87486703

CABLE TIE,312mm L

2шт.

4

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

2шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

2шт.

6

87610682

NEG BATTERY CABLE,485mm L

1шт.

7

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

9

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

11

87671746

BUMPER,Neoprene

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

87610681

POS BATTERY CABLE

1шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

18

87653377

BRACKET

2шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

20

87610679

POS BATTERY CABLE

1шт.

21

87610680

NEG BATTERY CABLE,1200mm L

1шт.

22

87664021

COVER

2шт.

23

87403835

WET BATTERY,Group 49, 12V, 850CCA

2шт.

Выбрано товаров: 24
