(88.055.02) - DIA KIT, ENGINE BLOCK HEATER

Запчасти Case 590SN (88.055.02) - DIA KIT, ENGINE BLOCK HEATER (88) - ACCESSORIES

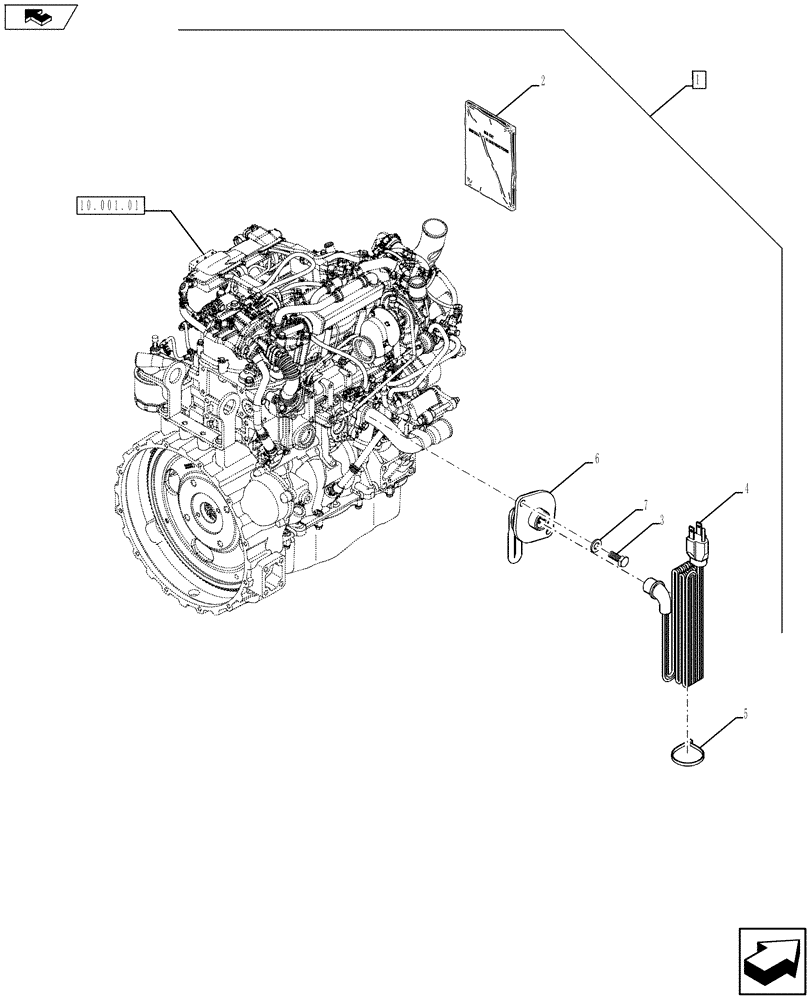

Схема запчастей Case 590SN - (88.055.02) - DIA KIT, ENGINE BLOCK HEATER (88) - ACCESSORIES
7
10.001.01
3
5
6
2
home
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87447135

SERVICE KIT

Engine Block Heater, Incl 2 - 7, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84376309

INSTRUCTION

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

4

196466A1

ELECTRIC CABLE

Engine Heater

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

6

8602005

HEATER,750W, 120V

750W, 120V

1шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.
