(88.055.01[04]) - DIA KIT, GRID HEATER INSTALLATION

Запчасти Case 590SN (88.055.01[04]) - DIA KIT, GRID HEATER INSTALLATION (88) - ACCESSORIES

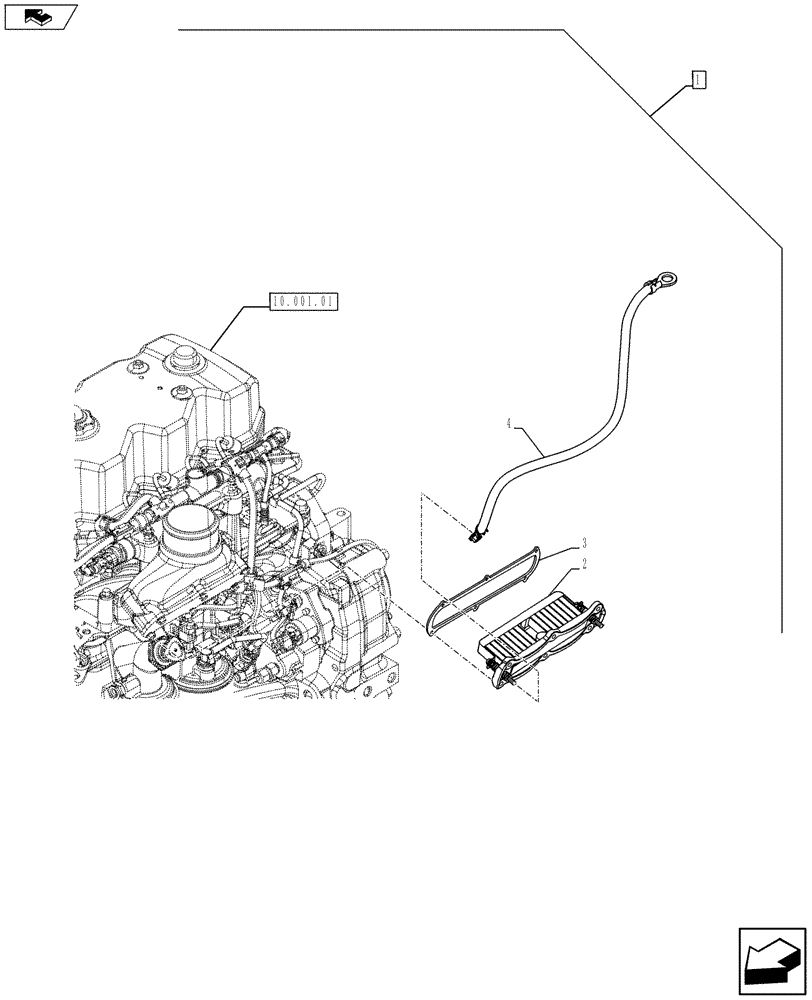

Схема запчастей Case 590SN - (88.055.01[04]) - DIA KIT, GRID HEATER INSTALLATION (88) - ACCESSORIES
10.001.01
4
home
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87732181

SERVICE KIT

Grid Heater Installation, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.055.01 [01] to 88.055.01 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

2854837

HEATER

Grid Heater

1шт.

3

2854701

GASKET,0.8mm Thk

1шт.

4

87601612

GROUND CABLE

1шт.
