Запчасти Case 590SN (88.050.01[05]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

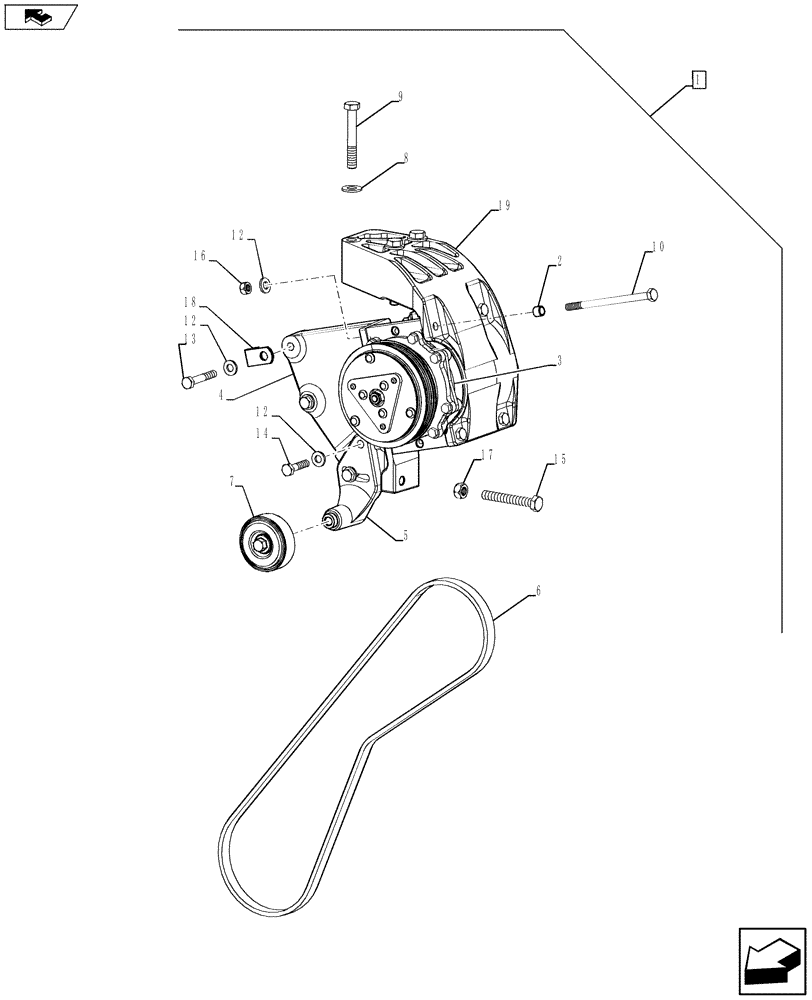

Схема запчастей Case 590SN - (88.050.01[05]) - DIA KIT, A/C HPCR (88) - ACCESSORIES
9
4
15
12
2
14
18
7
1
17
12
13
3
6
16
home
19
10
8
12
5

Артикул

Название

Примечание

Количество

1

84412148

SERVICE KIT

A/C HPCR, Incl 2 - 19, Serial Range: -`-1

1шт.

See Ref. 88.050.01 [01] to 88.050.01 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

2шт.

3

84159488

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley 123mm D

1шт.

4

87551297

SUPPORT

1шт.

5

87551299

SUPPORT

1шт.

6

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

1шт.

7

87548073

IDLER

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

9

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

10

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

2шт.

11

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

13

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

15

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

18

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

19

87551296

BRACKET

1шт.

Выбрано товаров: 21
