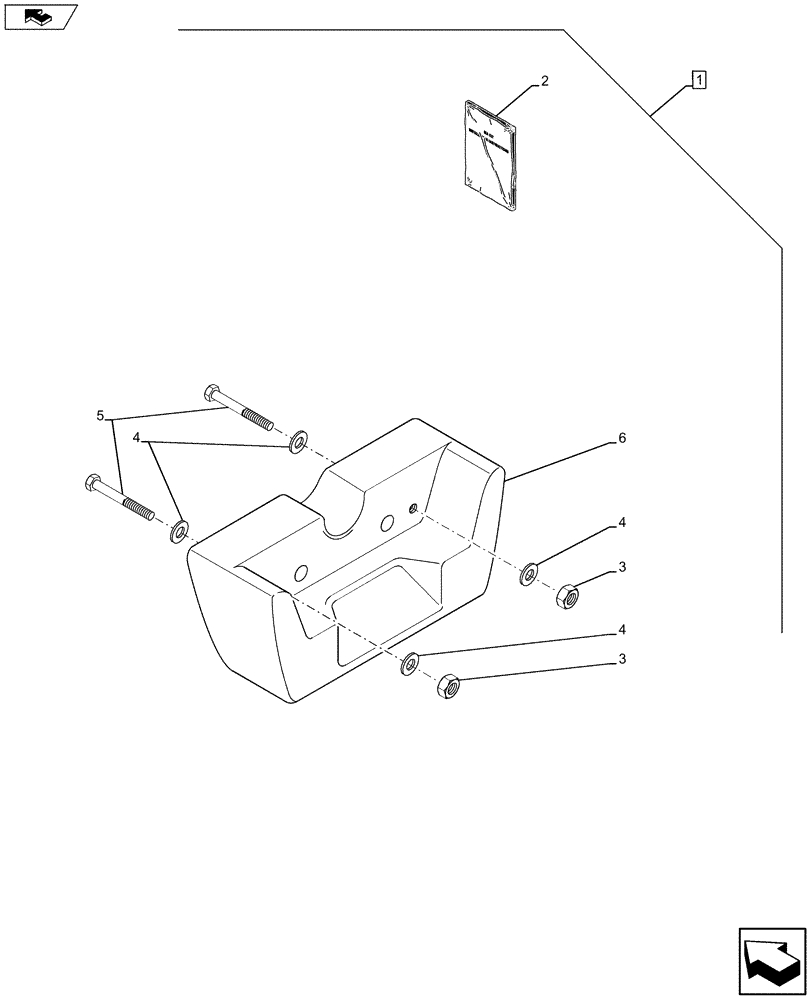

Запчасти Case 590SN (88.037.01) - DIA KIT, STANDARD COUNTERWEIGHT (88) - ACCESSORIES

1

84275784

CONSTRUCTION DIA

Standard Counterweight, Incl 2 - 6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84275787

INSTRUCTION

1шт.

3

829-1420

NUT,M20, Cl 10

2шт.

4

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

4шт.

5

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

2шт.

6

84254687

COUNTERWEIGHT,310 Kg / 700 Lb

700 Lbs

1шт.
