(88.035.62[09]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER

Запчасти Case 590SN (88.035.62[09]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES

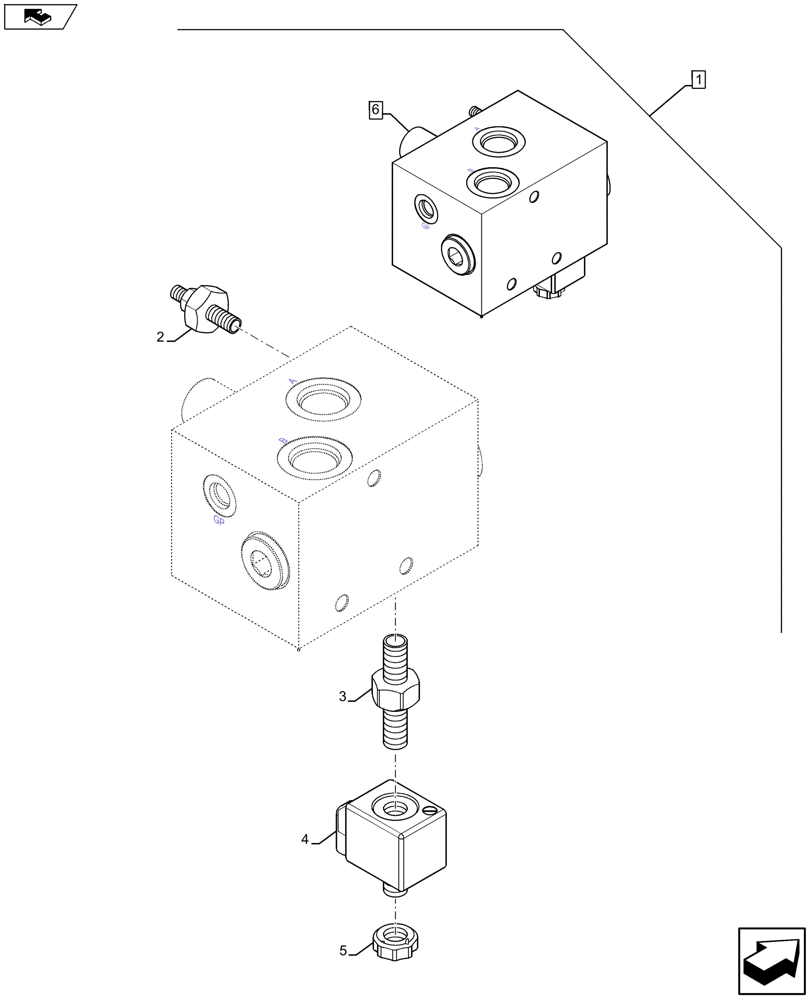

Схема запчастей Case 590SN - (88.035.62[09]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES
home
1
2
4
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546990

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2 - 6

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.62 [01] to 88.035.62 [08]

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247109

VALVE

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
