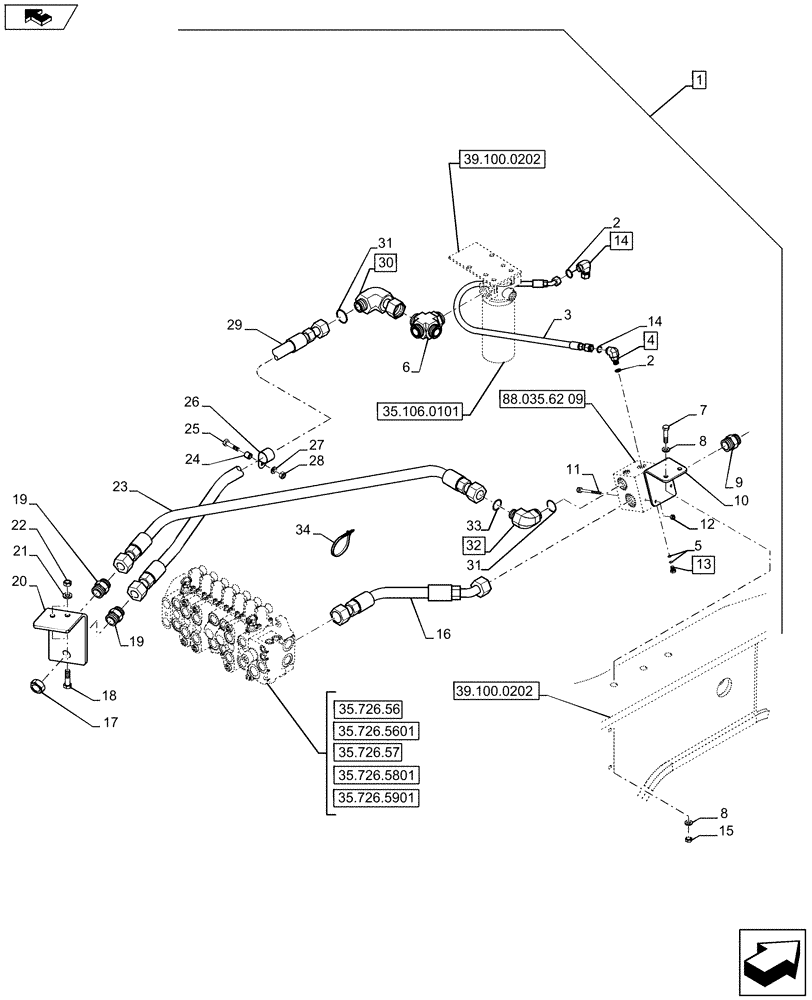

Запчасти Case 590SN (88.035.62[03]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, STD DIPPER (88) - ACCESSORIES

1

84546990

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2 - 34

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.62 [01] to 88.035.62 [02], 88.035.62 [04] to 88.035.62 [09]

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

84514723

HOSE ASSY.,10mm ID x 1035mm L

1шт.

4

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 2, 5

1шт.

5

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 2

1шт.

6

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

7

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

8

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

9

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

10

84257782

BRACKET

1шт.

11

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

12

43362

NUT,M8 x 1.25, Cl 10

2шт.

13

76349

PLUG,9/16" - 18 ORB

Assy, Incl 14

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

337475

NUT,M12, Cl 10

2шт.

16

84283270

HOSE ASSY.,19mm ID x 415mm L

1шт.

17

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

18

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

19

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

20

84407250

BRACKET, SUPPORTING

1шт.

21

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

22

86500689

NUT,M10 x 1.5, Cl 10

2шт.

23

84407246

HYD TUBE,19mm ID x 970mm L

1шт.

24

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

25

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

26

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

29

84407245

HYDRAULIC HOSE,19mm ID x 953mm L

1шт.

30

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Assy, Incl 31

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

32

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Assy, Incl 31, 33

1шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
