(88.035.61[07]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 590SN (88.035.61[07]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

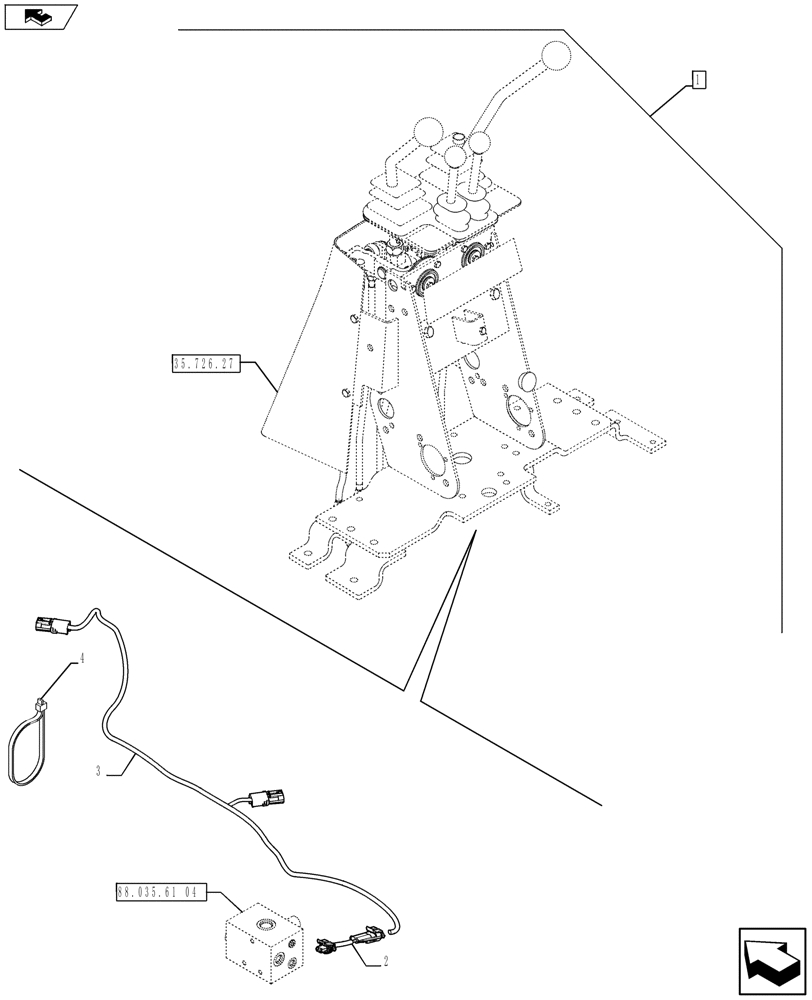

Схема запчастей Case 590SN - (88.035.61[07]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
3
35.726.27
2
a
1
4
home
88.035.61 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47359953

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 4

1шт.

See Ref. 88.035.61 [01] to 88.035.61 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292392

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
