Запчасти Case 590SN (88.035.61[02]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

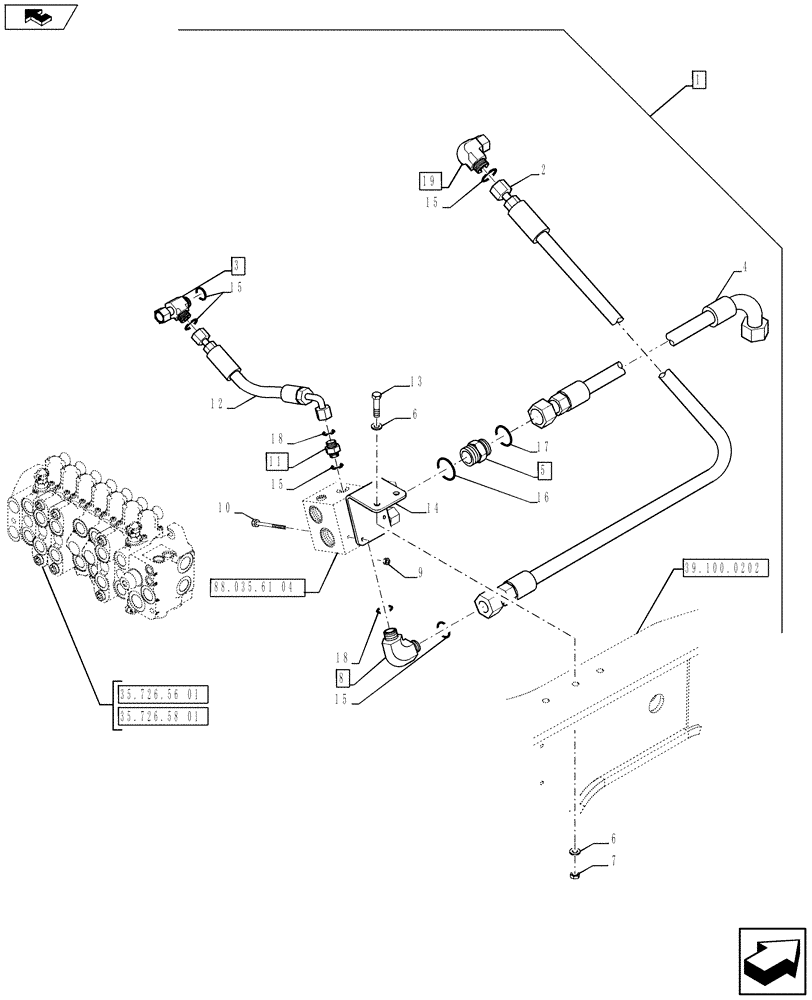

Схема запчастей Case 590SN - (88.035.61[02]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
7
6
5
13
17
15
14
39.100.0202
18
12
4
6
8
9
3
35.726.58 01
11
15
19
15
35.726.56 01
15
10
18
16
88.035.61 04
home
2
1

Артикул

Название

Примечание

Количество

1

47359953

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 19

1шт.

See Ref. 88.035.61 [01], 88.035.61 [03] to 88.035.61 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84573738

HOSE,10mm ID x 560mm L

1шт.

3

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 15 (Q.ty 2)

1шт.

4

84275042

HOSE ASSY.,19mm ID x 411mm L

1шт.

5

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 16 - 17

1шт.

6

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

7

337475

NUT,M12, Cl 10

2шт.

8

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 15, 18

1шт.

9

43362

NUT,M8 x 1.25, Cl 10

2шт.

10

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

11

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 15, 18

1шт.

12

84259315

HOSE ASSY.,10mm ID x 288mm L

1шт.

13

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

14

84257782

BRACKET

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Assy, Incl 15

1шт.

Выбрано товаров: 21
