(88.035.58[02]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS

Запчасти Case 590SN (88.035.58[02]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES

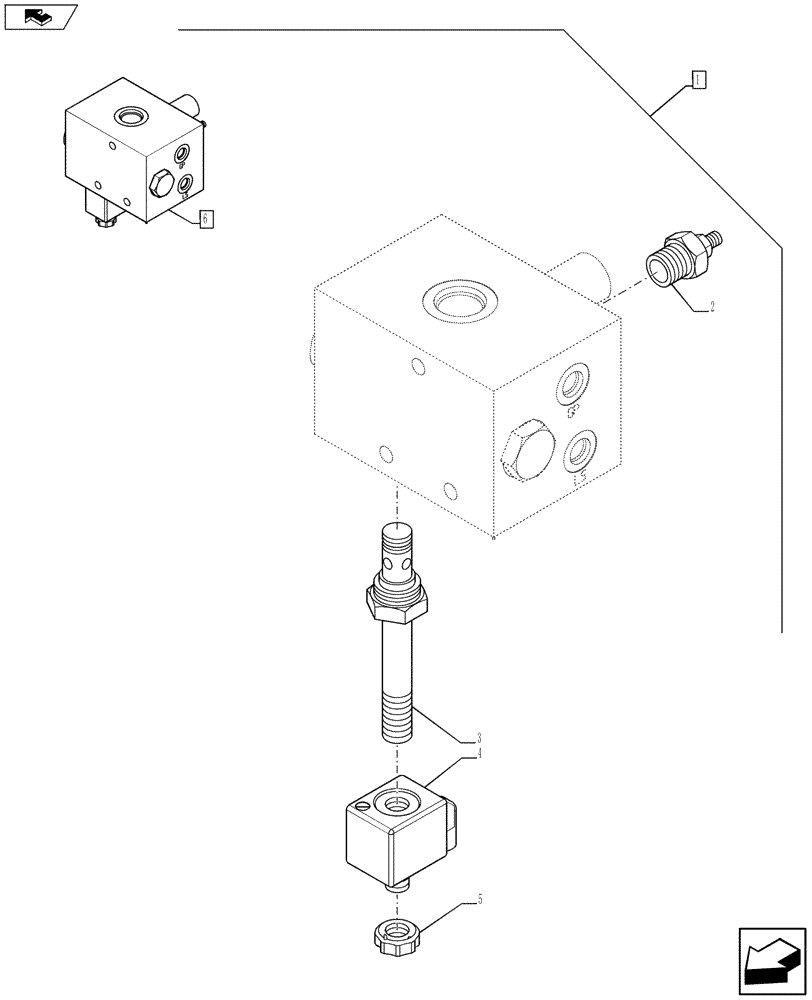

Схема запчастей Case 590SN - (88.035.58[02]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES
2
home
4
6
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47357827

CONSTRUCTION DIA

UNI-AUX STANDARD PILOT CONTROLS, Incl 2 - 6

1шт.

See Ref. 88.035.58 [01], 88.035.58 [03] to 88.035.58 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247110

VALVE

Assy, Incl 2 - 5

1шт.
