(88.035.55[06]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL

Запчасти Case 590SN (88.035.55[06]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

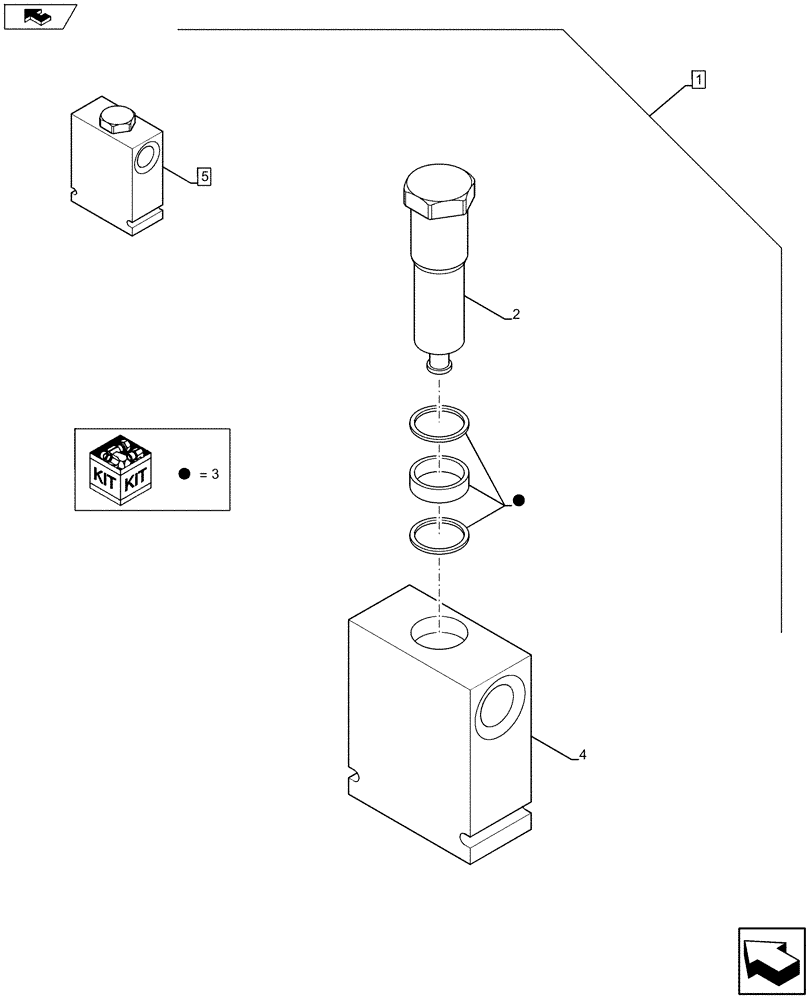

Схема запчастей Case 590SN - (88.035.55[06]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
home
1
2
4
3
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 5

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.55 [01] to 88.035.55 [05]

1шт.

2

84422094

CHECK VALVE

1шт.

3

84422097

SERVICE KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

5

84422084

CHECK VALVE

Assy, Incl 2 - 4

1шт.
