(88.035.55[04]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL

Запчасти Case 590SN (88.035.55[04]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

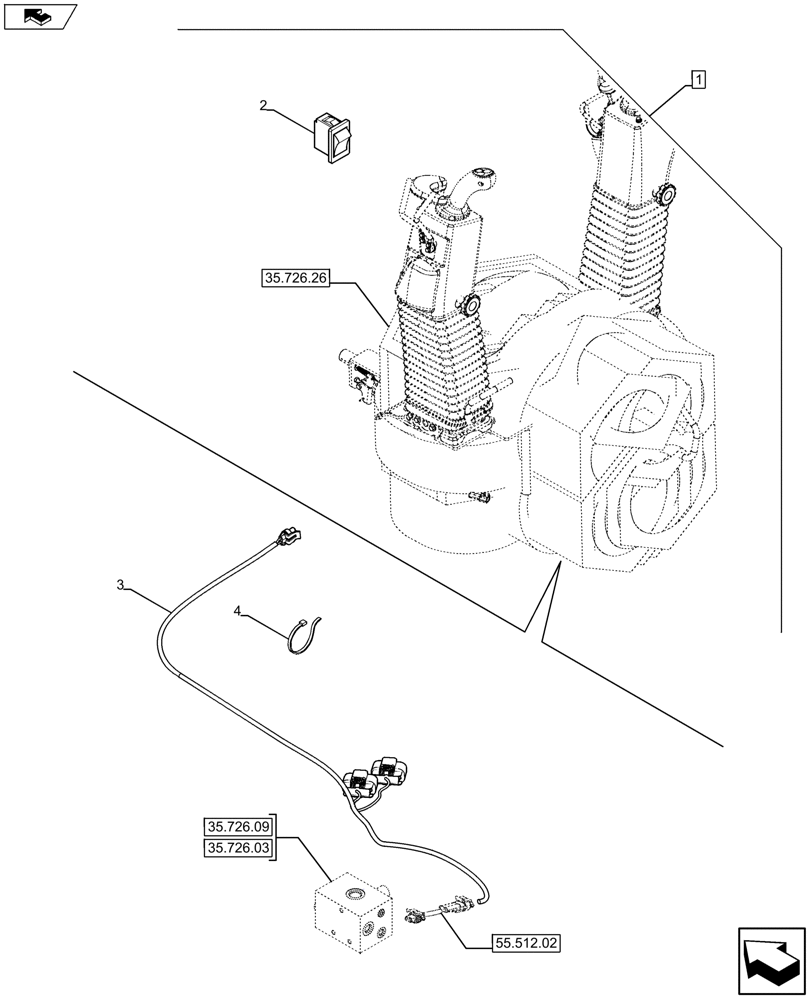

Схема запчастей Case 590SN - (88.035.55[04]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
1
35.726.26
4
35.726.03
a
2
35.726.09
home
3
55.512.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.55 [01] to 88.035.55 [03], 88.035.55 [05] to 88.035.55 [06]

1шт.

2

84241093

SWITCH

1шт.

3

84292393

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
